SA200

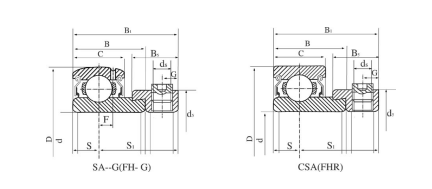

SA200 drawing.png

Bearing No.	Boundary Dimensions（mm/inch）										Basic Load Rating(N)		Weight

											Dynamic	Static	Kg(pc)
	d	D	B1	B	C	S	ds	G	B5	ds	Cr	Cor
SA201	12	40 1.5748	28.6 1.126	19.1 0.752	12 0.4724	6.5 0.256	M6×0.75 1/4-28UNF	4.8 0.189	13.5 0.531	28.6 1.126	7360	4480	0.12
SA201-8	1/2.												0.12
SA202	15	47 1.5748	28.6 1.126	19.1 0.752	12 0.4724	6.5 0.256	M6×0.75 1/4-28UNF	4.8 0.189	13.5 0.531	28.6 1.126	7360	4480	0.1
SA202-9	9/16.												0.1
SA202-10	5/8.												0.1
SA203	17	47 1.5748	28.6 1.126	19.1 0.752	12 0.4724	6.5 0.256	M6×0.75 1/4-28UNF	4.8 0.189	13.5 0.531	28.6 1.126	7360	4480	0.09
SA203-11	11/16.												0.09
SA204	20	47 1.8504	31 1.22	21.5 0.8465	14 0.5512	7.5 0.295	M6×0.75 1/4-28UNF	4.8 0.189	13.5 0.531	33.3 1.311	9880	6200	0.16
SA204-12	3/4.												0.16
SA205	25	52 2.0472	31 1.22	21.5 0.8465	15 0.596	7.5 0.295	M6×0.75 1/4-28UNF	4.8 0.189	13.5 0.531	38.1 1.5	10780	6980	0.2
SA205-13	13/16												0.22
SA205-14	7/8.												0.21
SA205-15	15/16												0.21
SA205-16	1												0.2
SA206	30	62 2.4409	35.7 1.406	23.8 0.937	16 0.6299	9 0.354	M6×0.75 1/4-28UNF	6 0.236	15.9 0.626	44.5 1.752	14970	10040	0.3
SA206-17	1-1/16.												0.32
SA206-18	1-1/8.												0.31
SA206-19	1-3/16.												0.3
SA206-20	1-1/4.												0.29
SA207	35	72 2.8346	38.9 1.531	25.4 1	17 0.6693	9.5 0.374	M8×1 5/16-24UNF	6.8 0.268	17.5 0.689	55.6 2.189	19750	13670	0.42
SA207-20	1-1/4.												0.46
SA207-21	1-5/16.												0.43
SA207-22	1-3/8.												0.42
SA207-23	1-7/16.												0.41
SA208	40	80 3.1496	43.7 1.721	30.2 1.189	18 0.7087	11 0.433	M8×1 5/16-24UNF	6.8 0.268	18.3 0.72	60.3 2.374	22710	15940	0.6
SA208-24	1-1/2.												0.58
SA208-25	1-9/16.												0.6
SA209	45	85 3.3465	43.7 1.721	30.2 1.189	19 0.748	11 0.433	M8×1 5/16-24UNF	6.8 0.268	18.3 0.72	63.5 2.5	24360	17710	0.76
SA209-26	1-5/8.
SA209-27	1-11/16.
SA209-28	1-3/4.
SA210	50	90 3.5433	43.7 1.721	30.2 1.189	20 0.7874	11 0.433	M8×1 5/16-24UNF	6.8 0.268	18.3 0.72	69.9 2.752	26980	19840	0.91
SA210-29	1-13/16
SA210-30	1-7/8.
SA210-31	1-15/16
SA210-32	2
SA211	55	100 3.937	48.4 1.906	32.5 1.2795	21 0.8268	12 0.472	M8×1 5/16-24UNF	8 0.315	20.7 0.815	76.2 3	33370	25110	1.26
SA211-32	2
SA211-33	2-1/16.
SA211-34	2-1/8.
SA211-35	2-3/16.
SA212	60	110 4.3307	53.1 2.091	37.2 1.4646	22 0.8661	13.5 0.532	M10×1 3/8-24UNF	8 0.315	22.3 0.878	84.2 3.315	36740	27970	1.7
SA212-36	2-1/4.
SA212-37	2-5/16.
SA212-38	2-3/8.
SA212-39	2-7/16.
