SB200

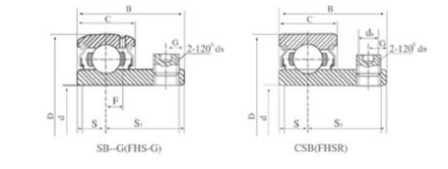

SB200 Drawing.png

Bearing No.	Boundary Dimensions（mm/inch）								Basic Load Rating(N)		Weight

									Dynamic	Static	Kg(pc)
	d	D	B	C	S	S1	ds	G	Cr	Cor
SB201	12	40 1.5748	22 0.8661	12 0.4724	6 0.236	16 0.63	M6×0.75 1/4-28UNF	4.5 0.177	7360	4480	0.12
SB201-8	1/2.										0.12
SB202	15	47 1.5748	22 0.8661	12 0.4724	6 0.236	16 0.63	M6×0.75 1/4-28UNF	4.5 0.177	7360	4480	0.1
SB202-9	9/16.										0.1
SB202-10	5/8.										0.1
SB203	17	47 1.5748	22 0.8661	12 0.4724	6 0.236	16 0.63	M6×0.75 1/4-28UNF	4.5 0.177	7360	4480	0.09
SB203-11	11/16.										0.09
SB204	20	47 1.8504	25 0.9843	14 0.5512	7 0.276	18 0.709	M6×0.75 1/4-28UNF	4.5 0.177	9880	6200	0.16
SB204-12	3/4.										0.16
SB205	25	52 2.0472	27 1.063	15 0.5906	7.5 0.295	19.5 0.766	M6×0.75 1/4-28UNF	5.5 0.217	10780	6980	0.2
SB205-13	13/16.										0.22
SB205-14	7/8.										0.21
SB205-15	15/16										0.21
SB205-16	1										0.2
SB206	30	62 2.4409	30 1.1811	16 0.6299	8 0.315	22 0.866	M6×0.75 1/4-28UNF	6 0.236	14970	10040	0.3
SB206-17	1-1/16.										0.32
SB206-18	1-1/8.										0.31
SB206-19	1-3/16.										0.3
SB206-20	1-1/4.										0.29
SB207	35	72 2.8346	32 1.2598	17 0.6693	8.5 0.335	23.5 0.925	M8×1 5/16-24UNF	6.5 0.256	19750	13670	0.42
SB207-20	1-1/4.										0.46
SB207-21	1-5/16.										0.43
SB207-22	1-3/8.										0.42
SB207-23	1-7/16.										0.41
SB208	40	80 3.1496	34 1.3386	18 0.7087	9 0.354	25 0.984	M8×1 5/16-24UNF	7 0.276	22710	15940	0.6
SB208-24	1-1/2.										0.58
SB208-25	1-9/16.										0.6
SB209	45	85 3.3465	41.2 1.622	19 0.748	10.2 0.402	31 1.22	M8×1 5/16-24UNF	8.2 0.323	24360	17710	0.76
SB209-26	1-5/8.
SB209-27	1-11/16.
SB209-28	1-3/4.
SB210	50	90 3.5433	43.5 1.7126	20 0.7874	10.9 0.429	32.6 1.283	M10×1 3/8-24UNF	9.2 0.362	26980	19840	0.91
SB210-29	1-13/16
SB210-30	1-7/8.
SB210-31	1-15/16
SB210-32	2
SB211	55	100 3.937	45.3 1.7835	21 0.8268	11.8 0.465	33.5 1.319	M10×1 3/8-24UNF	9.8 0.386	33370	25110	1.26
SB211-32	2
SB211-33	2-1/16.
SB211-34	2-1/8.
SB211-35	2-3/16.
SB212	60	110 4.3307	53.7 2.1142	22 0.8661	14.9 0.587	38.8 1.528	M10×1 3/8-24UNF	9.2 0.386	36740	27970	1.7
SB212-36	2-1/4.
SB212-37	2-5/16.
SB212-38	2-3/8.
SB212-39	2-7/16.
