SER200

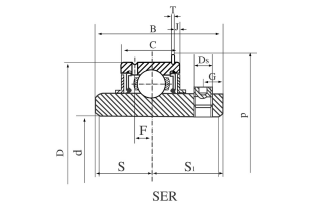

SER200 drawing.png

Bearing No.	Boundary Dimensions（mm/inch）												Basic Load Rating(N)		Weight

													Dynamic	Static	Kg(pc)
	d	D	B	C	S	S₁	T	F	J	P	G	d_s	Cr	Cor
SER204	20	47	31	15.9	10.3	20.7	1.12	3.8	2.46	52.7	4.8	M6×0.75	9880	6200	0.21
SER204-12	3/4.	1.8504	1.221	0.626	0.406	0.815	0.044	0.15	0.097	2.075	0.189	1/4-28UNF
SER205	25	52 2.0472	34.9 1.374	19 0.748	13.1 0.516	21.8 0.858	1.12 0.044	5.2 0.205	2.46 0.097	57.9 2.28	5 0.197	M6×0.75 1/4-28UNF	10780	6980	0.27
SER205-13	13/16.
SER205-14	7/8.
SER205-15	15/16
SER205-16	1
SER206	30	62 2.4409	38.1 1.5	22.2 0.874	15.9 0.626	22.2 0.874	1.7 0.067	5.6 0.22	3.28 0.129	67.7 2.665	5 0.197	M6×0.75 1/4-28UNF	14970	10040	0.39
SER206-17	1-1/16.
SER206-18	1-1/8.
SER206-19	1-3/16.
SER206-20	1-1/4.
SER207	35	72 2.8346	42.9 1.689	23.8 0.937	17.5 0.689	25.4 1	1.7 0.067	5.6 0.22	3.28 0.129	78.6 3.094	6.7 0.264	M8×1 5/16-24UNF	19750	13670	0.63
SER207-20	1-1/4.
SER207-21	1-5/16.
SER207-22	1-3/8.
SER207-23	1-7/16.
SER208	40	80 3.1496	49.2 1.937	27.8 1.0945	19 0.748	30.2 1.189	1.7 0.067	6.4 0.252	3.28 0.129	86.6 3.409	8 0.315	M8×1 5/16-24UNF	22710	15940	0.81
SER208-24	1-1/2.
SER208-25	1-9/16.
SER209	45	85 3.3465	49.2 1.937	27.8 1.0945	19 0.748	30.2 1.189	1.7 0.067	6.4 0.252	3.28 0.129	91.6 3.606	8 0.315	M8×1 5/16-24UNF	24360	17710	0.9
SER209-26	1-5/8.
SER209-27	1-11/16.
SER209-28	1-3/4.
SER210	50	90 3.5433	51.6 2.0315	28.6 1.126	19 0.748	32.6 1.283	2.46 0.097	7.5 0.295	3.28 0.129	96.5 3.799	10 0.394	M10×1 3/8-24UNF	26980	19840	0.98
SER210-29	1-13/16.
SER210-30	1-7/8.
SER210-31	1-15/16.
SER210-32	2
SER211	55	100 3.937	55.6 2.189	30.2 1.189	22.2 0.874	33.4 1.315	2.46 0.097	7.5 0.295	3.28 0.129	106.5 4.193	10 0.394	M10×1 3/8-24UNF	33370	25110	1.4
SER211-32	2
SER211-33	2-1/16.
SER211-34	2-1/8.
SER211-35	2-3/16.
SER212	60	110 4.3307	65.1 2.563	31.8 1.252	25.4 1	39.7 1.563	2.46 0.097	7.5 0.295	3.28 0.129	116.6 4.591	10 0.394	M10×1 3/8-24UNF	36740	27970	1.89
SER212-36	2-1/4.
SER212-37	2-5/16.
SER212-38	2-3/8.
SER212-39	2-7/16.
