HC200

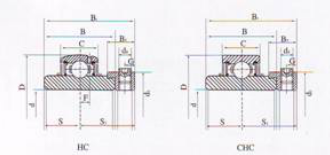

HC200 drawing.png

Bearing No.	Boundary Dimensions（mm/inch）											Basic Load Rating(N)		Weight

												Dynamic	Static	Kg(pc)
	d	D	B1	B	C	S	Ds	G	B5	d3	F	Cr	Cor
HC204	20	47	43.7	34.2	17	17.1	M6×0.75	4.8	13.5	33.3	3.7	9880	6200	0.23
HC204-12	3/4.	1.8504	1.72	1.3465	0.6693	0.673	1/4-28UNF	0.189	0.531	1.311	0.146			0.23
HC205	25	52 2.0472	44.4 1.748	34.9 1.374	17 0.6693	17.5 0.689	M6×0.75 1/4-28UNF	4.8 0.189	13.5 0.531	38.1 1.5	3.9 0.154	10780	6980	0.27
HC205-13	13/16													0.32
HC205-14	7/8.													0.31
HC205-15	15/16													0.29
HC05-16	1													0.27
HC206	30	62 2.4409	48.4 1.906	36.5 1.437	19 0.748	18.3 0.72	M8×1 5/16-24UNF	6 0.236	15.9 0.626	44.5 1.752	5 0.197	14970	10040	0.45
HC206-17	1-1/16.													0.5
HC206-18	1-1/8.													0.47
HC06-19	1-3/16.													0.45
HC06-20	1-1/4.													0.42
HC207	35	72 2.8346	51.1 2.012	37.6 1.4803	20 0.7874	18.8 0.74	M8×1 5/16-24UNF	6.8 0.268	17.5 0.689	55.6 2.189	5.7 0.224	19750	13670	0.6
HC07-20	1-1/4.													0.67
HC07-21	1-5/16.													0.63
HC07-22	1-3/8.													0.6
HC07-23	1-7/16.													0.57
HC208	40	80 3.1496	56.3 2.217	42.8 1.685	21 0.8268	21.4 0.843	M8×1 5/16-24UNF	6.8 0.268	18.3 0.72	60.3 2.374	6.2 0.244	22710	15940	0.79
HC208-24	1-1/2.													0.84
HC208-25	1-9/16.													0.8
HC209	45	85 3.3465	56.3 2.217	42.8 1.685	22 0.8661	21.4 0.843	M8×1 5/16-24UNF	6.8 0.268	18.3 0.72	63.5 2.5	6.2 0.252	24360	17710	0.85
HC209-26	1-5/8.													0.96
HC209-27	1-11/16.													0.91
HC209-28	1-3/4.													0.87
HC210	50	90 3.5433	62.7 2.469	49.2 1.937	24 0.9449	24.6 0.969	M8×1 5/16-24UNF	6.8 0.268	18.3 0.72	69.9 2.752	6.5 0.256	26980	19840	0.99
HC210-29	1-13/16													1.14
HC210-30	1-7/8.													1.08
HC210-31	1-15/16													1.02
HC210-32	2													0.96
HC211	55	100 3.937	71.4 2.811	55.5 2.185	25 0.9843	27.8 1.094	M8×1 5/16-24UNF	8 0.315	20.7 0.815	76.2 3	7 0.276	33370	25110	1.32
HC211-32	2													1.52
HC211-33	2-1/16.													1.44
HC211-34	2-1/8.													1.37
HC211-35	2-3/16.													1.29
HC212	60	110 4.3307	77.8 3.063	61.9 2.437	27 1.063	31 1.22	M10×1 3/8-24UNF	8 0.315	22.3 0.878	84.2 3.315	7.6 0.299	36740	27970	1.88
HC212-36	2-1/4.													2.04
HC212-37	2-5/16.													1.95
HC212-38	2-3/8.													1.9
HC212-39	2-7/16.													1.77
HC213	65	120 4.7244	85.7 33.74	68.6 2.7008	28 1.1024	34.1 1.343	M10×1 3/8-24UNF	8.5 0.335	23.5 0.925	86 3.386	8.5 0.335	440170	34180	2.41
HC213-40	2-1/2.													2.51
HC213-41	2-9/16.													2.4
HC214	70	125 4.9213	85.7 3.374	68.6 2.7008	29 1.1417	34.1 1.343	M10×1 3/8-24UNF	8.5 0.335	23.5 0.925	90 3.543	8.9 0.35	46790	37590	2.55
HC214-42	2-3/8.													2.79
HC214-43	2-11/16.													2.68
HC214-44	2-3/4.													2.56
HC215	75	130 5.1181	92.1 3.626	75 2.9528	30 1.1811	37.3 1.469	M10×1 3/8-24UNF	8.5 0.335	23.5 0.925	102 4.016	9.2 0.362	50850	41260	2.84
HC215-45	2-13/16													3.14
HC215-46	2-7/8.													3.01
HC215-47	2-15/16													2.88
HC215-48	3													2.74
