Products Bearings UCCX

UCCX

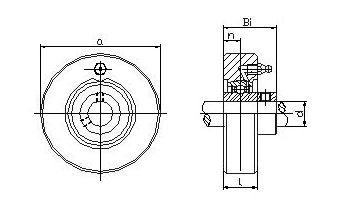

Unit No.	Shaft Dia d		Boundary Dimensions(mm)				Bearing No.	Housing
								Housing No.	Mass (kg)

	(in)	(mm)	a	l	Bi	n
UCCX05-14	7/8.		90	27	38.1	15.9	UCX05-14	CX05	0.71
UCCX05-15	15/16						UCX05-15
UCCX05-16	1						UCX05-16
UCCX05		25					UCX05
UCCX06-18	1-1/8.		100	30	42.9	17.5	UCX06-18	CX6	0.92
UCCX06-19	1-3/16.						UCX06-19
UCCX06-20	1-1/4.						UCX06-20
UCCX06		30					UC306
UCCX07-20	1-1/4.		110	34	49.2	19	UCX07-20	CX7	1.18
UCCX07-22	1-3/8.						UCX07-22
UCCX07-23	1-7/16.						UCX07-23
UCCX07		35					UC307
UCCX08-24	1-1/2.		120	38	49.2	19	UCX08-24	CX8	1.57
UCCX08		40					UCX08
UCCX09-26	1-5/8.		120	38	51.6	19	UCX09-26	CX9	1.4
UCCX09-27	1-11/16.						UCX09-27
UCCX09-28	1-3/4.						UCX09-28
UCCX09		45					UCX09
UCCX10-30	1-7/8.		130	40	55.6	22.2	UCX10-30	CX10	1.65
UCCX10-31	1-15/16						UCX10-31
UCCX10-32	2						UCX10-32
UCCX10		50					UCX10
UCCX11-34	2-1/8.		150	42	65.1	25.4	UCX11-34	CX11	2.5
UCCX11-35	2-3/16.						UCX11-35
UCCX11-36	2-1/4.						UCX11-36
UCCX11		55					UCX11
UCCX12-38	2-3/8.		160	44	65.1	25.4	UCX12-38	CX12	2.73
UCCX12-39	2-7/16.						UCX12-39
UCCX12		60					UCX12
