UCTX

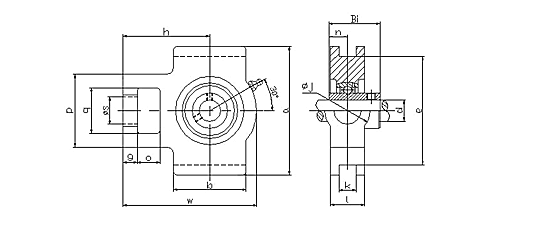

UCT300 drawing.png

Unit No.	Shaft Dia d		Boundary Dimensions(mm)															Bearing No.	Housing
																			HousingNo.	Mass (kg)

	(in)	(mm)	o	g	p	q	s	b	k	e	a	w	j	l	h	Bi	n
UCTX05-14	7/8.		16	10	56	37	22	57	12	89	102	113	37	28	70	38.1	15.9	UCX05-14	TX05	1.01
UCTX05-15	15/16																	UCX05-15
UCTX05-16	1																	UCX05-16
UCTX05		25																UCX05
UCTX06-18	1-1/8.		16	13	64	37	22	64	12	89	102	129	37	30	78	42.9	17.5	UCX06-18	TX06	1.12
UCTX06-19	1-3/16.																	UCX06-19
UCTX06-20	1-1/4.																	UCX06-20
UCTX06		30																UC306
UCTX07-20	1-1/4.		19	15	83	49	29	83	16	102	114	144	49	36	88	49.2	19	UCX07-20	TX07	1.78
UCTX07-22	1-3/8.																	UCX07-22
UCTX07-23	1-7/16.																	UCX07-23
UCTX07		35																UC307
UCTX08-24	1-1/2.		19	15	83	49	29	83	16	102	117	144	49	36	87	49.2	19	UCX08-24	TX08	1.67
UCTX08		40																UCX08
UCTX09-26	1-5/8.		19	16	83	49	29	86	16	102	117	149	49	38	90	51.6	19	UCX09-26	TX09	1.8
UCTX09-27	1-11/16.																	UCX09-27
UCTX09-28	1-3/4.																	UCX09-28
UCTX09		45																UCX09
UCTX10-30	1-7/8.		25	19	102	64	35	95	22	130	146	171	64	42	106	55.6	22.2	UCX10-30	TX10	2.95
UCTX10-31	1-15/16																	UCX10-31
UCTX10-32	2																	UCX10-32
UCTX10		50																UCX10
UCTX11-34	2-1/8.		32	19	102	64	35	102	22	130	146	194	64	42	119	65.1	25.4	UCX11-34	TX11	3.3
UCTX11-35	2-3/16.																	UCX11-35
UCTX11		55																UCX11
UCTX12-38	2-3/8.		32	21	111	70	41	121	26	151	167	224	70	48	137	65.1	25.4	UCX12-38	TX12	5.33
UCTX12-39	2-7/16.																	UCX12-39
UCTX12		60																UCX12
UCTX13-40	2-1/2.		32	21	111	70	41	121	26	151	167	224	70	48	137	74.6	30.2	UCX13-40	TX13	5.15
UCTX13		65																UCX13
UCTX14-43	2-11/16.		32	21	111	70	41	121	26	151	167	232	70	48	140	77.8	33.3	UCX14-43	TX14	5.23
UCTX14-44	2-3/4.																	UCX14-44
UCTX14		70																UCX14
UCTX15-47	2-15/16		32	21	111	70	41	121	28	165	184	235	70	48	140	82.6	33.3	UCX15-47	TX15	5.29
UCTX18-48	3																	UCX15-48
UCTX15		75																UCX15
UCTX16-50	3-1/8.		38	28	124	73	48	157	28	173	198	260	73	54	162	85.7	34.1	UCX16-50	TX16	7.21
UCTX16		80																UCX16
UCTX17-52	3-1/4.		38	28	124	73	48	157	28	173	198	260	73	54	162	96	39.7	UCX17-52	TX17	7.18
UCTX17-55	3-7/16.																	UCX17-55
UCTX17		85																UCX17
