UCT300

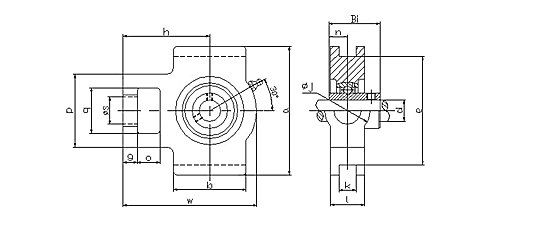

UCT300 drawing.png

Unit No.	d		Boundary Dimensions(mm)															Bearing No.	Housing
																			Housing No.	Mass (kg)

	(in)	(mm)	o	g	p	q	s	b	k	e	a	w	j	l	h	Bi	n
UCT305-14	7/8.		16	12	62	36	26	65	12	80	89	122	36	26	76	38	15	UC305-14	T305	1.05
UCT305-15	15/16																	UC305-15
UCT305-16	1																	UC305-16
UCT305		25																UC305
UCT306-18	1-1/8.		18	14	70	41	28	74	16	90	100	137	41	28	85	43	17	UC306-18	T306	1.24
UCT306-19	1-3/16.																	UC306-19
UCT306		30																UC306
UCT307-20	1-1/4.		20	15	75	45	30	80	16	100	111	150	45	32	94	48	19	UC307-20	T307	1.69
UCT307-21	1-5/16.																	UC307-21
UCT307-22	1-3/8.																	UC307-22
UCT307-23	1-7/16.																	UC307-23
UCT307		35																UC307
UCT308-24	1-1/2.		22	17	83	50	32	89	18	112	124	162	50	34	100	52	19	UC308-24	T308	2.04
UCT308-25	1-9/16.																	UC308-25
UCT308		40																UC308
UCT309-26	1-5/8.		24	18	90	55	34	97	18	125	138	178	55	38	110	57	22	UC309-26	T309	2.72
UCT309-27	1-11/16.																	UC309-27
UCT309-28	1-3/4.																	UC309-28
UCT309		45																UC309
UCT310-30	1-7/8.		27	20	98	61	37	106	20	140	151	191	61	40	117	61	22	UC310-30	T310	3.35
UCT310-31	1-15/16																	UC310-31
UCT310		50																UC310
UCT311-32	2		29	21	105	66	39	115	22	150	163	207	66	44	127	66	25	UC311-32	T311	4.33
UCT311-34	2-1/8.																	UC311-34
UCT311-35	2-3/16.																	UC311-35
UCT311		55																UC311
UCT312-36	2-1/4.		31	23	113	71	41	123	22	160	178	220	71	46	135	71	26	UC312-36	T312	5
UCT312-38	2-3/8.																	UC312-38
UCT312-39	2-7/16.																	UC312-39
UCT312		60																UC312
UCT313-40	2-1/2.		32	25	116	71	43	134	26	170	190	238	80	50	146	75	30	UC313-40	T313	6
UCT313		65																UC313
UCT314-44	2-3/4.		36	25	130	85	46	140	26	180	202	252	90	52	155	78	33	UC314-44	T314	7.05
UCT314		70																UC314
UCT315-48	3		36	25	132	85	46	150	26	192	216	262	90	55	160	82	32	UC315-48	T315	9.28
UCT315		75																UC315
UCT316-50	3-1/8.		42	28	150	98	53	160	30	204	230	282	102	60	174	86	34	UC316-50	T316	10.03
UCT316		80																UC316
UCT317-52	3-1/4.		42	30	152	98	53	170	32	214	240	298	102	64	183	96	40	UC317-52	T317	13.3
UCT317		85																UC317
UCT318-56	3-1/2.		46	30	160	106	57	175	32	228	255	312	110	66	192	96	40	UC318-56	T318	14.1
UCT318		90																UC318
UCT319-60	3-3/4.		46	31	165	106	57	180	35	240	270	322	110	72	197	103	41	UC319-60	T319	16.3
UCT319		95																UC319
UCT320-64	4		48	32	175	115	59	200	35	260	290	345	120	75	210	108	42	UC320-64	T320	21.2
UCT320		100																UC320
UCT321		105	48	32	175	115	59	200	35	260	290	345	120	75	210	112	44	UC321	T321	19.8
UCT322		110	52	38	185	125	65	215	38	285	320	385	130	80	235	117	46	UC322	T322	25.7
UCT324		120	60	42	210	140	70	230	45	320	355	432	140	90	267	126	51	UC324	T324	36.5
UCT326		130	65	45	220	150	75	240	50	350	385	465	150	100	285	135	54	UC326	T326	46
UCT328		140	70	50	230	160	80	255	50	380	415	515	155	100	315	145	59	UC328	T328	55.5
