UCT200

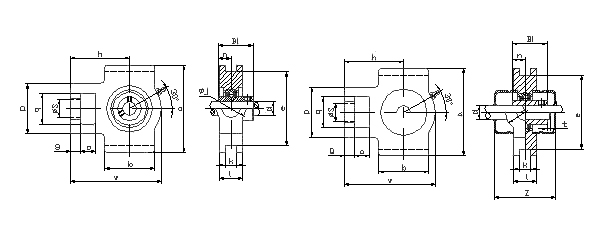

UCT200 DRAWING.jpg

Unit No.	Shaft Dia d		Boundary Dimensions(mm)																	Bearing No.	Housing
																					Housing No.	Mass (kg)
	(in)	(mm)	o	g	p	q	s	b	k	e	a	w	j	l	h	t	z	Bi	n
UCT201-8	1/2.		16	10	51	32	19	51	12	76	89	94	32	21	61	2	51	31	12.7	UC201-8	T204	0.56
UCT202-9	9/16.																			UC202-9
UCT202-10	5/8.																			UC202-10
UCT203-11	11/16.																			UC203-11
UCT204-12	3/4.																			UC204-12
UCT201		12																		UC201
UCT202		15																		UC202
UCT203		17																		UC203
UCT204		20																		UC204
UCT205-13	13/16.		16	10	51	32	19	51	12	76	89	97	32	24	62	2	57	34.1	14.3	UC205-13	T205	0.63
UCT205-14	7/8.																			UC205-14
UCT205-15	15/16																			UC205-15
UCT205-16	1																			UC205-16
UCT205		25																		UC205
UCT206-17	1-1/16.		16	10	56	37	22	57	12	89	102	113	37	28	70	2	62	38.1	15.9	UC206-17	T206	0.95
UCT206-18	1-1/18.																			UC206-18
UCT206-19	1-3/16.																			UC206-19
UCT206-20	1-1/4.																			UC206-20
UCT206		30																		UC206
UCT207-20	1-1/4.		16	13	64	37	22	64	12	89	102	129	37	30	78	3	72	42.9	17.5	UC207-20	T207	1.09
UCT207-21	1-5/16.																			UC207-21
UCT207-22	1-3/8.																			UC207-22
UCT207-23	1-7/16.																			UC207-23
UCT207		35																		UC207
UCT208-24	1-1/2.		19	16	83	49	29	83	16	102	114	144	49	33	88	3	82	49.2	19	UC208-24	T208	1.72
UCT208-25	1-9/16.																			UC208-25
UCT208		40																		UC208
UCT209-26	1-5/8.		19	16	83	49	29	83	16	102	117	144	49	35	87	3	82	49.2	19	UC209-26	T209	1.75
UCT209-27	1-11/16.																			UC209-27
UCT209-28	1-3/4.																			UC209-28
UCT209		45																		UC209
UCT210-29	1-13/16		19	16	83	49	29	86	16	102	117	149	49	37	90	3	87	51.6	19	UC210-29	T210	1.75
UCT210-30	1-7/8.																			UC210-30
UCT210-31	1-15/16																			UC210-31
UCT210-32	2																			UC210-32
UCT210		50																		UC210
UCT211-32	2		25	19	102	64	35	95	22	130	146	171	64	38	106	4	92	55.6	22.2	UC211-32	T211	2.8
UCT211-33	2-1/16.																			UC211-33
UCT211-34	2-1/8.																			UC211-34
UCT211-35	2-3/16.																			UC211-35
UCT211		55																		UC211
UCT212-36	2-1/4.		32	19	102	64	35	102	22	130	146	194	64	42	119	4	102	65.1	25.4	UC212-36	T212	3.4
UCT212-37	2-5/16.																			UC212-37
UCT212-38	2-3/8.																			UC212-38
UCT212-39	2-7/16.																			UC212-39
UCT212		60																		UC212
UCT213-40	2-1/2.		32	21	111	70	41	121	26	151	167	224	70	44	137	4	107	65.1	25.4	UC213-40	T213	5
UCT213-41	2-9/16.																			UC213-41
UCT213		65																		UC213
UCT214-42	2-3/8.		32	21	111	70	41	121	26	151	167	224	70	46	137			74.6	30.2	UC214-42	T214	4.7
UCT214-43	2-11/16.																			UC214-43
UCT214-44	2-3/4.																			UC214-44
UCT214		70																		UC214
UCT215-45	2-13/16		32	21	111	70	41	121	26	151	167	232	70	48	140			77.8	33.3	UC215-45	T215	5.1
UCT215-46	2-7/8.																			UC215-46
UCT215-47	2-15/16																			UC215-47
UCT215-48	3																			UC215-48
UCT215		75																		UC215
UCT216-50	3-18.		32	21	111	70	41	121	26	165	184	235	70	51	140			82.6	33.3	UC216-50	T216	5.5
UCT216		80																		UC216
UCT217-52	3-1/4.		38	29	124	73	48	157	30	173	198	260	73	54	162			85.7	34.1	UC217-52	T217	7.4
UCT217		85																		UC217
UCT218-56	3-1/2.		40	30	130	80	48	140	30	190	215	275	80	55	170			96	39.7	UC218-56	T218	10.2
UCT218		90																		UC218
