Products Bearings UCFA200

UCFA200

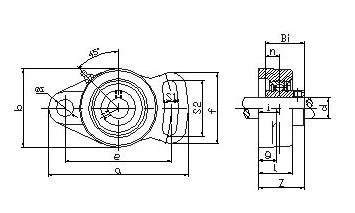

Unit No.	Shaft Dia d		Boundary Dimensions(mm)													Bolt Size		Bearing No.	Housing
																			Housing No.	Mass (kg)
	(in)	(mm)	a	e	i	g	l	S	S1	S2	b	f	z	Bi	n	mm	in
UCFA201-8	1/2.		98	78	15	12	26	10	10	40	60	50	33.3	31	12.7	M8	5/16.	UC201-8	FA204	0.3
UCFA202-9	9/16.																	UC202-9
UCFA202-10	5/8.																	UC202-10
UCFA203-11	11/16.																	UC203-11
UCFA204-12	3/4.																	UC204-12
UCFA201		12																UC201
UCFA202		15																UC202
UCFA203		17																UC203
UCFA204		20																UC204
UCFA205-13	13/16		125	98	16	14	27	12	13	51	68	65	35.7	34	14.3	M10	3/8.	UC205-13	FA205	0.5
UCFA205-14	7/8.																	UC205-14
UCFA205-15	15/16																	UC205-15
UCFA205-16	1																	UC205-16
UCFA205		25																UC205
UCFA206-17	1-1/16.		144	117	18	14	31	12	13	58	80	72	40.2	38.1	15.9	M10	3/8.	UC206-17	FA206	0.65
UCFA206-18	1-1/8.																	UC206-18
UCFA206-19	1-3/16.																	UC206-19
UCFA206-20	1-1/4.																	UC206-20
UCFA206		30																UC206
UCFA207-20	1-1/4.		161	130	19	16	34	14	15	66	90	82	44.4	42.9	17.5	M12	7/16.	UC207-20	FA207	0.9
UCFA207-21	1-5/16.																	UC207-21
UCFA207-22	1-3/8.																	UC207-22
UCFA207-23	1-7/16.																	UC207-23
UCFA207		35																UC207
UCFA208-24	1-1/2.		175	144	21	16	36	14	15	71	100	87	51.2	49.2	19	M12	7/16.	UC208-24	FA208	1
UCFA208-25	1-9/16.																	UC208-25
UCFA208		40																UC208
UCFA209-26	1-5/8.		181	148	22	18	38	16	17	72	108	90	52.2	49.2	19	M14	1/2.	UC209-26	FA209	1.2
UCFA209-27	1-11/16.																	UC209-27
UCFA209-28	1-3/4.																	UC209-28
UCFA209		45																UC209
UCFA210-29	1-13/16		190	157	22	18	40	16	17	76	115	94	54.6	51.6	19	M14	1/2.	UC210-29	FA210	1.4
UCFA210-30	1-7/8.																	UC210-30
UCFA210-31	1-15/16																	UC210-31
UCFA210-32	2																	UC210-32
UCFA210		50																UC210
UCFA211-32	2		219	184	25	20	43	16	17	86	130	104	58.4	55.6	22.2	M14	1/2.	UC211-32	FA211	2.3
UCFA211-33	2-1/16.																	UC211-33
UCFA211-34	2-1/8.																	UC211-34
UCFA211-35	2-3/16.																	UC211-35
UCFA211		55																UC211
UCFA212-36	2-1/4.		240	202	29	18	48	18	19	100	140	120	68.7	65.1	25.4	M16	5/8.	UC212-36	FA212	2.75
UCFA212-37	2-5/16.																	UC212-37
UCFA212-38	2-3/8.																	UC212-38
UCFA212-39	2-7/16.																	UC212-39
UCFA212		60																UC212
UCFA213-40	2-1/2.		248	210	30	20	49	18	19	106	152	126	69.7	65.1	25.4	M16	5/8.	UC213-40	FA213	3.35
UCFA213-41	2-9/16.																	UC213-41
UCFA213		65																UC213
