UCFL300

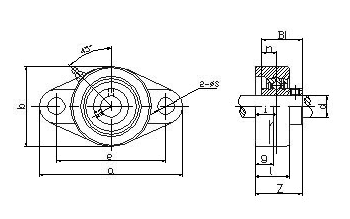

UCFL300 drawing.png

Unit No.	Shaft Dia d		Boundary Dimensions(mm)										Bolt Size		Bearing No.	Housing
																Housing No.	Mass (kg)

			a	e	i	g	l	s	b	z	Bi	n	(mm)	(in)
	(in)	(mm)
UCFL305-14	7/8.		150	113	16	13	29	19	80	39	38	15	M16	5/8.	UC305-14	FL305	1.2
UCFL305-15	15/16														UC305-15
UCFL305-16	1														UC305-16
UCFL305		25													UC305
UCFL306-18	1-1/8.		180	134	18	15	32	23	90	44	43	17	M20	3/4.	UC306-18	FL306	1.7
UCFL306-19	1-3/16.														UC306-19
UCFL306		30													UC306
UCFL307-20	1-1/4.		185	141	20	16	36	23	100	49	48	19	M20	3/4.	UC307-20	FL307	2.2
UCFL307-21	1-5/16.														UC307-21
UCFL307-22	1-3/8.														UC307-22
UCFL307-23	1-7/16.														UC307-23
UCFL307		35													UC307
UCFL308-24	1-1/2.		200	158	23	17	40	23	112	56	52	19	M20	3/4.	UC308-24	FL308	2.9
UCFL308-25	1-9/16.														UC308-25
UCFL308		40													UC308
UCFL309-26	1-5/8.		230	177	25	18	44	25	125	60	57	22	M22	7/8.	UC309-26	FL309	3.6
UCFL309-27	1-11/16.														UC309-27
UCFL309-28	1-3/4.														UC309-28
UCFL309		45													UC309
UCFL310-30	1-7/8.		240	187	28	19	48	25	140	67	61	22	M22	7/8.	UC310-30	FL310	4.7
UCFL310-31	1-15/16														UC310-31
UCFL310		50													UC310
UCFL311-32	2		250	198	30	20	52	25	150	71	66	25	M22	7/8.	UC311-32	FL311	5.7
UCFL311-34	2-1/8.														UC311-34
UCFL311-35	2-3/16.														UC311-35
UCFL311		55													UC311
UCFL312-36	2-1/4.		270	212	33	22	56	31	160	78	71	26	M27	1	UC312-36	FL312	6.8
UCFL312-38	2-3/8.														UC312-38
UCFL312-39	2-7/16.														UC312-39
UCFL312		60													UC312
UCFL313-40	2-1/2.		295	240	33	25	58	31	175	78	75	30	M27	1	UC313-40	FL313	7.8
UCFL313		65													UC313
UCFL314-44	2-3/4.		315	250	36	28	61	35	185	81	78	33	M30	1-1/8.	UC314-44	FL314	10
UCFL314		70													UC314
UCFL315-48	3		320	260	39	30	66	35	195	89	82	32	M30	1-1/8.	UC315-48	FL315	12
UCFL315		75													UC315
UCFL316-50	3-1/8.		355	285	38	32	68	38	210	90	86	34	M33	1-1/4.	UC316-50	FL316	13.7
UCFL316		80													UC316
UCFL317-52	3-1/4.		370	300	44	32	74	38	220	100	96	40	M33	1-1/4.	UC317-52	FL317	15.4
UCFL317		85													UC317
UCFL318-56	3-1/2.		385	315	44	36	76	38	235	100	96	40	M33	1-1/4.	UC318-56	FL318	19
UCFL318		90													UC318
UCFL319-60	3-3/4.		405	330	59	40	94	41	250	121	103	41	M36		UC319-60	FL319	20.6
UCFL319		95													UC319
UCFL320-64	4		440	360	59	40	94	44	270	125	108	42	M39		UC320-64	FL320	25.7
UCFL320		100													UC320
UCFL321		105	440	360	59	40	94	44	270	127	112	44	M39		UC321	FL321	27
UCFL322		110	470	390	60	42	96	44	300	131	117	46	M39		UC322	FL322	38
UCFL324		120	520	430	65	48	110	47	330	140	126	51	M42		UC324	FL324	43.67
UCFL326		130	550	460	65	50	115	47	360	146	135	54	M42		UC326	FL326	61.3
UCFL328		140	600	500	75	60	125	51	400	161	145	59	M45		UC328	FL328	90
