UCFL200

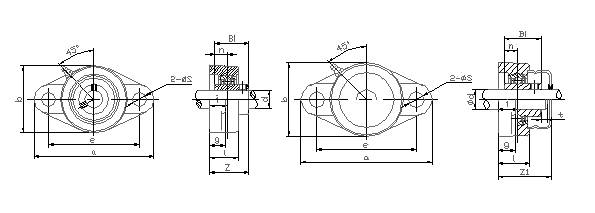

UCFL200 DRAWING.jpg

Uint No.	Shaft Dia d		BoundaryDimensions(mm)												Bolt Size		Bearing No.	Housing
																		Housing No.	Mass (Kg)
			a	e	i	g	l	s	b	t	z1	z	Bi	n	(mm)	(in)
	(in)	(mm)
UCFL201-8	1/2.		99	77	15	13	26	12	57			31	26	10	M10	3/8.	UCW201-8	FL203	0.25
UCFL202-9	9/16.																UCW202-9
UCFL202-10	5/8.																UCW202-10
UCFL203-11	11/16.																UCW203-11
UCFL201		12															UCW201
UCFL202		15															UCW202
UCFL203		17															UCW203
UCFL201-8	1/2.		113	90	15	12	26	12	60	2	40.5	33.3	31	12.7	M10	3/8.	UC201-8	FL204	0.28
UCFL202-9	9/16.																UC202-9
UCFL202-10	5/8.																UC202-10
UCFL203-11	11/16.																UC203-11
UCFL204-12	3/4.																UC204-12
UCFL201		12															UC201
UCFL202		15															UC202
UCFL203		17															UC203
UCFL204		20															UC204
UCFL205-13	13/16		130	99	16	14	27	16	68	2	44.5	35.7	34	14.3	M14	1/2.	UC205-13	FL205	0.4
UCFL205-14	7/8.																UC205-14
UCFL205-15	15/16																UC205-15
UCFL205-16	1																UC205-16
UCFL205		25															UC205
UCFL206-17	1-1/16.		148	117	18	14	31	16	80	2	49	40.2	38	15.9	M14	1/2.	UC206-17	FL206	0.54
UCFL206-18	1-1/8.																UC206-18
UCFL206-19	1-3/16.																UC206-19
UCFL206-20	1-1/4.																UC206-20
UCFL206		30															UC206
UCFL207-20	1-1/4.		161	130	19	16	34	16	90	3	55	44.4	43	17.5	M14	1/2.	UC207-20	FL207	0.65
UCFL207-21	1-5/16.																UC207-21
UCFL207-22	1-3/8.																UC207-22
UCFL207-23	1-7/16.																UC207-23
UCFL207		35															UC207
UCFL208-24	1-1/2.		175	144	21	16	36	16	100	3	62	51.2	49	19	M14	1/2.	UC208-24	FL208	0.8
UCFL208-25	1-9/16.																UC208-25
UCFL208		40															UC208
UCFL209-26	1-5/8.		188	148	22	18	38	19	108	3	63	52.2	49	19	M16	5/8.	UC209-26	FL209	1.15
UCFL209-27	1-11/16.																UC209-27
UCFL209-28	1-3/4.																UC209-28
UCFL209		45															UC209
UCFL210-29	1-13/16		197	157	22	18	40	19	115	3	66.5	54.6	52	19	M16	5/8.	UC210-29	FL210	1.25
UCFL210-30	1-7/8.																UC210-30
UCFL210-31	1-15/16																UC210-31
UCFL210-32	2																UC210-32
UCFL210		50															UC210
UCFL211-32	2		224	184	25	20	43	19	130	4	71	58.4	56	22.2	M16	5/8.	UC211-32	FL211	1.85
UCFL211-33	2-1/16.																UC211-33
UCFL211-34	2-1/8.																UC211-34
UCFL211-35	2-3/16.																UC211-35
UCFL211		55															UC211
UCFL212-36	2-1/4.		250	202	29	20	48	23	140	4	80	68.7	65	25.4	M20	3/4.	UC212-36	FL212	2.1
UCFL212-37	2-5/16.																UC212-37
UCFL212-38	2-3/8.																UC212-38
UCFL212-39	2-7/16.																UC212-39
UCFL212		60															UC212
UCFL213-40	2-1/2.		258	210	30	24	50	23	155	4	83.5	69.7	65	25.4	M20	3/4.	UC213-40	FL213	2.8
UCFL213-41	2-9/16.																UC213-41
UCFL213		65															UC213
UCFL214-42	2-5/8.		265	216	31	24	54	23	160			75.4	75	30.2	M20	3/4.	UC214-42	FL214	3.2
UCFL214-43	2-11/16.																UC214-43
UCFL214-44	2-3/4.																UC214-44
UCFL214		70															UC214
UCFL215-45	2-13/16		275	225	34	24	56	23	165			78.5	78	33.3	M20	3/4.	UC215-45	FL215	2.8
UCFL215-46	2-7/8.																UC215-46
UCFL215-47	2-15/16																UC215-47
UCFL215-48	3																UC215-48
UCFL215		75															UC215
UCFL216-50	3-1/8.		290	233	34	24	58	25	180			83.3	83	33.3	M22	7/8.	UC216-50	FL216	3.53
UCFL216		80															UC216
UCFL217-52	3-1/4.		305	248	36	26	63	25	190			87.6	86	34.1	M22	7/8.	UC217-52	FL217	5.5
UCFL217		85															UC217
UCFL218-56	3-1/2.		320	265	40	26	68	25	205			96.3	96	39.7	M22	7/8.	UC218-56	FL218	6
UCFL218		90															UC218
