Products Bearings UCFS300

UCFS300

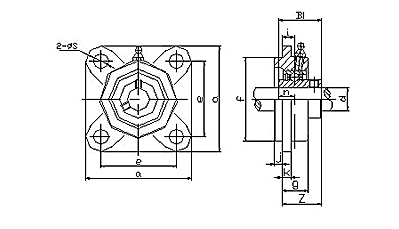

Uint No.	Shaft Dia d		Boundary Dimensions(mm)											Bolt Size		Bearing No.	Housing
																	Housing No.	Mass (Kgs)
			a	e	i	s	j	k	g	f	z	Bi	n	(mm)	(in)
	(in)	(mm)
UCFS305-14	7/8.		110	80	9	16	7	13	22	80	32	38	15	M14	1/2.	UC305-14	FS305	0.82
UCFS305-15	15/16															UC305-15
UCFS305-16	1															UC305-16
UCFS305		25														UC305
UCFS306-18	1-1/8.		125	95	10	16	8	15	24	90	36	43	17	M14	1/2.	UC306-18	FS306	1.15
UCFS306-19	1-3/16.															UC306-19
UCFS306		30														UC306
UCFS307-20	1-1/4.		135	100	11	19	9	16	27	100	40	48	19	M16	5/8.	UC307-20	FS307	1.45
UCFS307-21	1-5/16.															UC307-21
UCFS307-22	1-3/8.															UC307-22
UCFS307-23	1-7/16.															UC307-23
UCFS307		35														UC307
UCFS308-24	1-1/2.		150	112	13	19	10	17	30	115	46	52	19	M16	5/8.	UC308-24	FS308	2
UCFS308-25	1-9/16.															UC308-25
UCFS308		40														UC308
UCFS309-26	1-5/8.		160	125	14	19	11	18	33	125	49	57	22	M16	5/8.	UC309-26	FS309	2.35
UCFS309-27	1-11/16.															UC309-27
UCFS309-28	1-3/4.															UC309-28
UCFS309		45														UC309
UCFS310-30	1-7/8.		175	132	16	23	12	19	36	140	55	61	22	M20	3/4.	UC310-30	FS310	3.15
UCFS310-31	1-15/16															UC310-31
UCFS310		50														UC310
UCFS311-32	2		185	140	17	23	13	20	39	150	58	66	25	M20	3/4.	UC311-32	FS311	3.6
UCFS311-34	2-1/8.															UC311-33
UCFS311-35	2-3/16.															UC311-35
UCFS311		55														UC311
UCFS312-36	2-1/4.		195	150	19	23	14	22	42	160	64	71	26	M20	3/4.	UC312-36	FS312	4.2
UCFS312-38	2-3/8.															UC312-38
UCFS312-39	2-7/16.															UC312-39
UCFS312		60														UC312
UCFS313-40	2-1/2.		208	166	15	23	18	22	40	175	60	75	30	M20	3/4.	UC313-40	FS313	5
UCFS313		65														UC313
UCFS314-44	2-3/4.		226	178	18	25	18	25	43	185	63	78	33	M22	7/8.	UC314-44	FS314	6.3
UCFS314		70														UC314
UCFS315-48	3		236	184	21	25	18	25	48	200	71	82	32	M22	7/8.	UC315-48	FS315	7.4
UCFS315		75														UC315
UCFS316-50	3-1/8.		250	196	18	31	20	27	48	210	70	86	34	M27	1	UC316-50	FS316	8.5
UCFS316		80														UC316
UCFS317-52	3-1/4.		260	204	24	31	20	27	54	220	80	96	40	M27	1	UC317-52	FS317	9.2
UCFS317		85														UC317
UCFS318-56	3-1/2.		280	216	24	35	20	30	56	240	80	96	40	M30	1-1/8.	UC318-56	FS318	12.5
UCFS318		90														UC318
UCFS319-60	3-3/4.		290	228	39	35	20	30	74	250	101	103	41	M30	1-1/8.	UC319-60	FS319	14.5
UCFS319		95														UC319
UCFS320-64	4		310	242	39	38	20	32	74	260	105	108	42	M33	1-1/4.	UC320-64	FS320	17
UCFS320		100														UC320
UCFS321		105	310	242	39	38	20	32	74	260	107	112	44	M33	1-1/4.	UC321	FS321	14
UCFS322		110	340	266	35	41	25	35	71	300	106	117	46	M36		UC322	FS322	21.5
UCFS324		120	370	290	35	41	30	40	80	330	110	126	51	M36		UC324	FS324	30
UCFS326		130	410	320	35	41	30	45	85	360	116	135	54	M36		UC326	FS326	41.5
UCFS328		140	450	350	45	41	30	55	95	400	131	145	59	M36		UC328	FS328	61.5
