UCF300

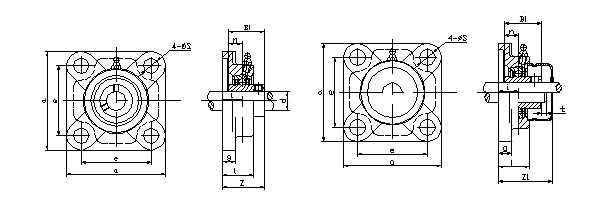

UCF300 Drawing.png

Uint No.	Shaft Dia d		Boundary Dimensions(mm)									Bolt Size		Bearing No.	Housing
															Housing No.	Mass (Kgs)
			a	e	i	g	l	s	z	Bi	n	(mm)	(in)
	(in)	(mm)
UCF305-14	7/8.		110	80	16	13	29	16	39	38	15	M14	1/2.	UC305-14	F305	0.9
UCF305-15	15/16													UC305-15
UCF305-16	1													UC305-16
UCF305		25												UC305
UCF306-18	1-1/8.		125	95	18	15	32	16	44	43	17	M14	1/2.	UC306-18	F306	1.28
UCF306-19	1-3/16.													UC306-19
UCF306		30												UC306
UCF307-20	1-1/4.		135	100	20	16	36	19	49	48	19	M16	5/8.	UC307-20	F307	1.57
UCF307-21	1-5/16.													UC307-21
UCF307-22	1-3/8.													UC307-22
UCF307-23	1-7/16.													UC307-23
UCF307	1-1/2.	35												UC307
UCF308-24	1-1/2.		150	112	23	17	40	19	56	52	19	M16	5/8.	UC308-24	F308	2
UCF308-25	1-9/16.													UC308-25
UCF308		40												UC308
UCF309-26	1-5/8.		160	125	25	18	44	19	60	57	22	M16	5/8.	UC309-26	F309	2.6
UCF309-27	1-11/16.													UC309-27
UCF309-28	1-3/4.													UC309-28
UCF309		45												UC309
UCF310-30	1-7/8.		175	132	28	19	48	23	67	61	22	M20	3/4.	UC310-30	F310	2.68
UCF310-31	1-15/16													UC310-31
UCF310		50												UC310
UCF311-32	2-1/8.		185	140	30	20	52	23	71	66	25	M20	3/4.	UC311-32	F311	3.3
UCF311-34	2-1/8.													UC311-34
UCF311-35	2-3/16.													UC311-35
UCF311		55												UC311
UCF312-36	2-1/4.		195	150	33	22	56	23	78	71	26	M20	3/4.	UC312-36	F312	4.1
UCF312-38	2-3/8.													UC312-38
UCF312-39	2-7/16.													UC312-39
UCF312		60												UC312
UCF313-40	2-1/2.		208	166	33	22	58	23	78	75	30	M20	3/4.	UC313-40	F313	4.9
UCF313		65												UC313
UCF314-44	2-3/4.		226	178	36	25	61	25	81	78	33	M22	7/8.	UC314-44	F314	5.6
UCF314		70												UC314
UCF315-48	3		236	184	39	25	66	25	89	82	32	M22	7/8.	UC315-48	F315	7
UCF315		75												UC315
UCF316-50	3-1/8.		250	196	38	27	68	31	90	86	34	M27	1	UC316-50	F316	9
UCF316		80												UC316
UCF317-52	3-1/4.		260	204	44	27	74	31	100	96	40	M27	1	UC317-52	F317	10.5
UCF317		85												UC317
UCF318-56	3-1/2.		280	216	44	30	76	35	100	96	40	M30	1-1/8.	UC318-56	F318	12.8
UCF318		90												UC318
UCF319-60	3-3/4.		290	228	59	30	94	35	121	103	41	M30	1-1/8.	UC319-60	F319	13.8
UCF319		95												UC319
UCF320-64	4		310	242	59	32	94	38	125	108	42	M33	1-1/4.	UC320-64	F320	15.2
UCF320		100												UC320
UCF321		105	310	242	59	32	94	38	127	112	44	M33	1-1/4.	UC321	F321	15
UCF322		110	340	266	60	35	96	41	131	117	46	M36	1-3/8.	UC322	F322	21.8
UCF324		120	370	290	65	40	110	41	140	126	51	M36	1-3/8.	UC324	F324	25.2
UCF326		130	410	320	65	45	115	41	146	135	54	M36	1-3/8.	UC326	F326	37
UCF328		140	450	350	75	55	125	41	161	145	59	M36	1-3/8.	UC328	F328	57.8
