Products Bearings UCF200

UCF200

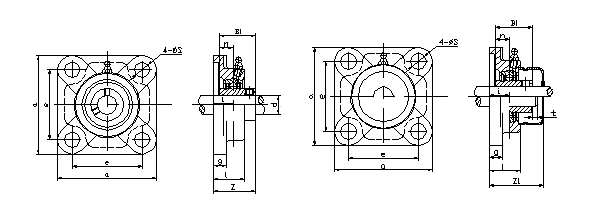

Unit No.	Shaft Dia d		Boundary Dimensions(mm)											Bolt Size		Bearing No.	Housing
																	Housing No.	Mass (Kgs)
			a	e	i	g	l	s	t	z1	z	Bi	n	(mm)	(in)
	(in)	(mm)
UCF201-8	1/2.		76	54	15	11	26	12			31	26	10	M10	3/8.	UC201-8	F203	0.5
UCF202-9	9/16.															UC202-9
UCF202-10	5/8.															UC202-10
UCF203-11	11/16.															UC203-11
UCF201		12														UC201
UCF202		15														UC202
UCF203		17														UC203
UCF201-8	1/2.		86	64	15	12	26	12	2	40.5	33.3	31	12.7	M10	3/8.	UC201-8	F204	0.6
UCF202-9	9/16.															UC202-9
UCF202-10	5/8.															UC202-10
UCF203-11	11/16.															UC203-11
UCF204-12	3/4.															UC204-12
UCF201		12														UC201
UCF202		15														UC202
UCF203		17														UC203
UCF204		20														UC204
UCF205-13	13/16		95	70	16	14	27	12	2	44.5	35.8	34.1	14.3	M10	3/8.	UC205-13	F205	0.86
UCF205-14	7/8.															UC205-14
UCF205-15	15/16															UC205-15
UCF205-16	1															UC205-16
UCF205		25														UC205
UCF206-17	1-1/16.		108	83	18	14	31	12	2	49	40.2	38.1	15.9	M10	3/8.	UC206-17	F206	1.1
UCF206-18	1-1/8.															UC206-18
UCF206-19	1-3/16.															UC206-19
UCF206-20	1-1/4.															UC206-20
UCF206		30														UC206
UCF207-20	1-1/4.		117	92	19	16	34	14	3	55	44.4	42.9	17.5	M12	7/16.	UC207-20	F207	1.6
UCF207-21	1-5/16.															UC207-21
UCF207-22	1-3/18.															UC207-22
UCF207-23	1-7/16.															UC207-23
UCF207		35														UC207
UCF208-24	1-1/2.		130	102	21	16	36	16	3	62	51.2	49.2	19	M14	1/2.	UC208-24	F208	1.9
UCF208-25	1-9/16.															UC208-25
UCF208		40														UC208
UCF209-26	1-5/8.		137	105	22	18	38	16	3	63	52.2	49.2	19	M14	1/2.	UC209-26	F209	2.4
UCF209-27	1-11/16.															UC209-27
UCF209-28	1-3/4.															UC209-28
UCF209		45														UC209
UCF210-29	1-13/16		143	111	22	18	40	16	3	66.5	54.6	51.6	19	M14	1/2.	UC210-29	F210	2.6
UCF210-30	1-7/8.															UC210-30
UCF210-31	1-15/16															UC210-31
UCF210-32	2															UC210-32
UCF210		50														UC210
UCF211-32	2		162	130	25	20	43	19	4	71	58.4	55.6	22.2	M16	5/8.	UC211-32	F211	3.5
UCF211-33	2-1/16.															UC211-33
UCF211-34	2-1/8.															UC211-34
UCF211-35	2-3/16.															UC211-35
UCF211		55														UC211
UCF212-36	2-1/4.		175	143	29	20	48	19	4	80	68.7	65.1	25.4	M16	5/8.	UC212-36	F212	4.2
UCF212-37	2-5/16.															UC212-37
UCF212-38	2-3/8.															UC212-38
UCF212-39	2-7/16.															UC212-39
UCF212		60														UC212
UCF213-40	2-1/2.		187	149	30	20	50	19	4	83.5	69.7	65.1	25.4	M16	5/8.	UC213-40	F213	5.3
UCF213-41	2-9/16.															UC213-41
UCF213		65														UC213
UCF214-42	2-5/8.		193	152	31	24	54	19			75.4	74.6	30.2	M16	5/8.	UC214-42	F214	5.5
UCF214-43	2-11/16.															UC214-43
UCF214-44	2-3/4.															UC214-44
UCF214		70														UC214
UCF215-45	2-13/16		200	159	34	24	56	19			78.5	77.8	33.3	M16	5/8.	UC215-45	F215	6.2
UCF215-46	2-7/8.															UC215-46
UCF215-47	2-15/16															UC215-47
UCF215-48	3															UC215-48
UCF215		75														UC215
UCF216-50	3-1/8.		208	165	34	24	58	23			83.3	82.6	33.3	M20	3/4.	UC216-50	F216	7.7
UCF216		80														UC216
UCF217-52	3-1/4.		220	175	36	26	63	23			87.6	85.7	34.1	M20	3/4.	UC217-52	F217	9
UCF217		85														UC217
UCF218-56	3-1/2.		235	187	40	26	68	23			96.3	96	39.7	M20	3/4.	UC218-56	F218	11.3
UCF218		90														UC218
