UCP300

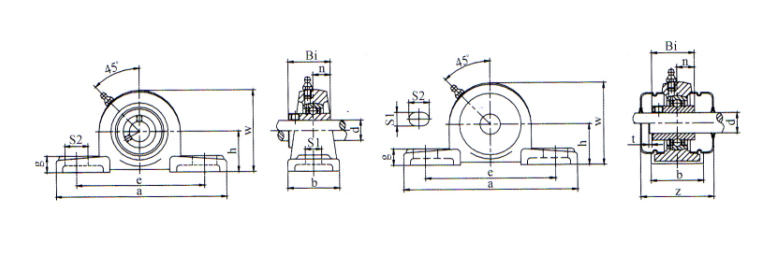

UCP DRAWING.jpg

Unit No.	Shaft Dia d		Boundary Dimensions(mm)										Bolt Size		Bearing No.	Housing
																Housing No.	Mass (kg)
	(in)	(mm)	h	a	e	b	s2	s1	g	w	Bi	n	(mm)	(in)
UCP305-14	7/8.		45	175	132	45	20	17	15	85	38	15	M14	1/2.	UC305-14	P305	0.9
UCP305-15	15/16														UC305-15
UCP305-16	1														UC305-16
UCP305		25													UC305
UCP306-18	1-1/8.		50	180	140	50	20	17	18	95	43	17	M14	1/2.	UC306-18	P306	1.1
UCP306-19	1-3/16.														UC306-19
UCP306		30													UC306
UCP307-20	1-1/4.		56	210	160	56	25	17	20	106	48	19	M14	1/2.	UC307-20	P307	1.95
UCP307-21	1-5/16.														UC307-21
UCP307-22	1-3/8.														UC307-22
UCP307-23	1-7/16.														UC307-23
UCP307		35													UC307
UCP308-24	1-1/2.		60	220	170	60	27	17	22	116	52	19	M14	1/2.	UC308-24	P308	2.2
UCP308-25	1-9/16.														UC308-25
UCP308		40													UC308
UCP309-26	1-5/8.		67	245	190	67	30	20	24	129	57	22	M16	5/8.	UC309-26	P309	3.3
UCP309-27	1-11/16.														UC309-27
UCP309-28	1-3/4.														UC309-28
UCP309		45													UC309
UCP310-30	1-7/8.		75	275	212	75	35	20	27	143	61	22	M16	5/8.	UC310-30	P310	4.8
UCP310-31	1-15/16														UC310-31
UCP310		50													UC310
UCP311-32	2		80	310	236	80	38	20	30	154	66	25	M16	5/8.	UC311-32	P311	5.3
UCP311-34	2-1/8.														UC311-34
UCP311-35	2-3/16.														UC311-35
UCP311		55													UC311
UCP312-36	2-1/4.		85	330	250	85	38	25	32	165	71	26	M20	3/4.	UC312-36	P312	6.3
UCP312-38	2-3/8.														UC312-38
UCP312-39	2-7/16.														UC312-39
UCP312		60													UC312
UCP313-40	2-1/2.		90	340	260	90	38	25	33	176	75	30	M20	3/4.	UC313-40	P313	8
UCP313		65													UC313
UCP314-44	2-3/4.		95	360	280	90	40	27	35	187	78	33	M22	7/8.	UC314-44	P314	8.3
UCP314		70													UC314
UCP315-48	3		100	380	290	100	40	27	35	198	82	32	M22	7/8.	UC315-48	P315	9.5
UCP315		75													UC315
UCP316-50	3-1/8.		106	400	300	110	40	27	40	210	86	34	M22	7/8.	UC316-50	P316	12.5
UCP316		80													UC315
UCP317-52	3-1/4.		112	420	320	110	45	33	40	220	96	40	M27	1	UC317-52	P317	14.5
UCP317		85													UC317
UCP318-56	3-1/2.		118	430	330	110	45	33	45	235	96	40	M27	1	UC318-56	P318	20.4
UCP318		90													UC318
UCP319-60	3-3/4.		125	470	360	120	50	36	45	250	103	41	M30	1-1/8.	UC319-60	P319	22.3
UCP319		95													UC319
UCP320-64	4		140	490	380	120	50	36	50	275	108	42	M30	1-1/8.	UC320-64	P320	25
UCP320		100													UC320
UCP321		105	140	490	380	120	50	36	50	280	112	44	M30	1-1/8.	UC321	P321	24
UCP322		110	150	520	400	140	55	40	55	300	117	46	M33	1-1/4.	UC322	P322	27.5
UCP324		120	160	570	450	140	55	40	65	320	126	51	M33	1-1/4.	UC324	P324	32.3
UCP326		130	180	600	480	140	55	40	75	355	135	54	M33	1-1/4.	UC326	P326	41
UCP328		140	200	620	500	140	55	40	75	390	145	59	M33	1-1/4.	UC328	P328	50
