Products Bearings UC300

UC300

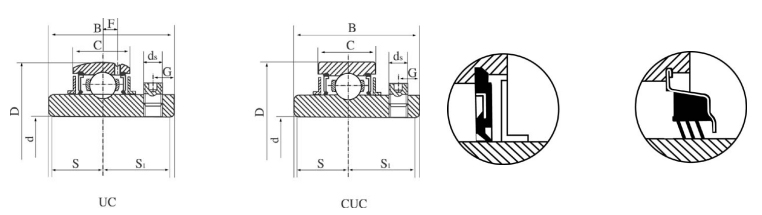

Bearing No.	Boundary Dimensions（mm/inch）									Basic Load Rating(KN)		Weight

										Dynamic	Static	Kg(pc)
	d	D	B	C	S	s1	G	dS	F	Cr	Cor
UC305	25	62 2.4409	38 1.4961	20 0.7874	15 0.591	23 0.906	6 0.236	M6×0.75 1/4-28UNF	5.4 0.213	17220	11930	0.35
UC305-13	13/16											0.4
UC305-14	7/8.											0.38
UC305-15	15/16											0.36
UC305-16	1											0.35
UC306	30	72 2.8346	43 1.6929	23 0.9055	17 0.669	26 1.024	6 0.236	M6×0.75 1/4-28UNF	5.7 0.225	20770	14170	0.56
UC306-17	1-1/16.											0.61
UC306-18	1-1/8.											0.58
UC306-19	1-3/16.											0.56
UC307	35	80 3.1496	48 1.8898	25 0.9843	19 0.748	29 1.142	8 0.315	M8×1 5/16-24UNF	6.2 0.244	25660	17920	0.71
UC307-20	1-1/4.											0.77
UC307-21	1-5/16.											0.74
UC307-22	1-3/8.											0.71
UC307-23	1-7/16.											0.68
UC308	40	90 3.5433	52 2.0472	27 1.063	19 0.748	33 1.299	10 0.394	M10×1 3/8-24UNF	7 0.276	31350	22380	0.96
UC308-24	1-1/2.											1.01
UC308-25	1-9/16.											0.97
UC309	45	100 3.937	57 2.2441	30 1.1811	22 0.866	35 1.378	10 0.394	M10×1 3/8-24UNF	7.8 0.307	40660	30000	1.28
UC309-26	1-5/8.											1.39
UC309-27	1-11/16.											1.35
UC309-28	1-3/4.											1.3
UC310	50	110 4.3307	61 2.4016	32 1.2598	22 0.866	39 1.535	12 0.472	M12×1.5 1/2-20UNF	8.5 0.335	47580	35710	1.65
UC310-30	1-7/8.											1.97
UC310-31	1-15/16											1.68
UC311	55	120 4.7244	66 2.5984	34 1.3386	25 0.984	41 1.614	12 0.472	M12×1.5 1/2-20UNF	9.2 0.362	55050	41910	2.07
UC311-32	2											2.25
UC311-33	2-1/16.											2.18
UC311-34	2-1/8.											2.12
UC311-35	2-3/16.											2.04
UC312	60	130 5.1181	71 2.7953	36 1.4173	26 1.0236	45 1.772	12 0.472	M12×1.5 1/2-20UNF	9.8 0.386	62880	48600	2.6
UC312-36	2-1/4.											2.75
UC312-37	2-5/6.											2.67
UC312-38	2-3/8.											2.58
UC312-39	2-7/16.											2.5
UC313	65	140 5.5118	75 2.9528	38 1.4961	30 1.181	45 1.772	12 0.472	M12×1.5 1/2-20UNF	10.5 0.413	72210	56680	3.25
UC313-40	2-1/2.											3.34
UC313-41	2-9/16.											3.24
UC314	70	150 5.9055	78 3.0708	40 1.5748	33 1.299	45 1.772	12 0.472	M12×1.5 1/2-20UNF	11.1 0.437	80100	63480	3.89
UC314-42	2-3/8.											4.11
UC314-43	2-11/16.											4
UC314-44	2-3/4.											3.9
UC315	75	160 6.2992	82 3.2283	42 1.6535	32 1.26	50 1.969	14 0.551	M14×1.5 9/16-20UNF	11.8 0.465	87250	71670	4.72
UC315-45	2-13/16											4.99
UC315-46	2-7/8.											4.85
UC315-47	2-15/16											4.76
UC315-48	3											4.63
UC316	80	170 6.6929	86 3.3858	44 1.7323	34 1.339	52 2.047	14 0.551	M14×1.5 9/16-20UNF	12.5 0.492	94570	80350	5.55
UC316-49	3-1/16.											5.72
UC316-50	3-1/8.											5.58
UC316-51	3-3/16.											5.49
UC317	85	180 7.0866	96 3.7795	46 1.811	40 1.575	56 2.205	16 0.63	M16×1.5 5/8-20UNF	13.1 0.516	102050	89520	6.67
UC317-52	3-1/4.											6.89
UC317-53	3-5/16.											6.76
UC317-55	3-7/16.											6.44
UC318	90	190 7.4803	96 3.7795	48 1.8898	40 1.575	56 2.05	16 0.63	M16×1.5 5/8-20UNF	13.8 0.543	110810	100760	7.56
UC318-55	3-7/16.											7.85
UC318-56	3-1/2.											7.67
UC319	95	200	103	50	41	62	16	M16×1.5
