SSUC300

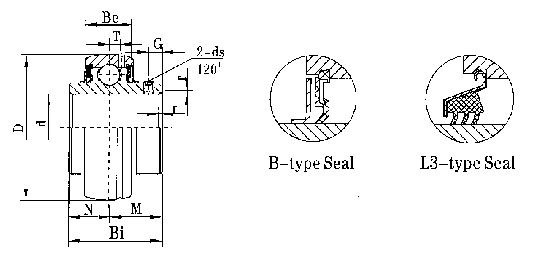

Bearing No. | Shaft Dia | Boundary Dimensions（mm） | Basic Load Rating(kN) | Weight | ||||||||||
| Dynamic | Static | Kg(pc) | ||||||||||||
| d | D | Bi | Be | r | N | M | G | dS | T | Cr | Cor | |||
| mm | in | |||||||||||||
| SSUC305 | 25 | 62 | 38 | 21 | 2.0 | 15 | 23 | 6 | M6×0.75 1/4-28UNF | 6.1 | 14.71 | 9.21 | 0.35 | |
| SSUC305-13 | 13/16 | 0.41 | ||||||||||||
| SSUC305-14 | 7/8 | 0.39 | ||||||||||||
| SSUC305-15 | 15/16 | 0.37 | ||||||||||||
| SSUC305-16 | 1 | 0.35 | ||||||||||||
| SSUC306 | 30 | 72 | 43 | 23 | 2.0 | 17 | 26 | 6 | M6×0.75 1/4-28UNF | 6.7 | 18.47 | 12.66 | 0.56 | |
| SSUC306-17 | 1-1/16 | 0.61 | ||||||||||||
| SSUC306-18 | 1-1/8 | 0.60 | ||||||||||||
| SSUC306-19 | 1-3/16 | 0.54 | ||||||||||||
| SSUC307 | 35 | 80 | 48 | 25 | 2.5 | 19 | 29 | 8 | M8×1 5/16-24UNF | 7.4 | 21.89 | 14.66 | 0.75 | |
| SSUC307-20 | 1-1/4 | 0.81 | ||||||||||||
| SSUC307-21 | 1-5/16 | 0.79 | ||||||||||||
| SSUC307-22 | 1-3/8 | 0.75 | ||||||||||||
| SSUC307-23 | 1-7/16 | 0.70 | ||||||||||||
| SSUC308 | 40 | 90 | 52 | 27 | 2.5 | 19 | 33 | 10 | M10×1.25 3/8-24UNF | 8.2 | 26.65 | 19.21 | 1.00 | |
| SSUC308-24 | 1-1/2 | 1.07 | ||||||||||||
| SSUC308-25 | 1-9/16 | 1.00 | ||||||||||||
| SSUC309 | 45 | 100 | 57 | 30 | 2.5 | 22 | 35 | 10 | M10×1.25 3/8-24UNF | 9 | 34.56 | 25.46 | 1.26 | |
| SSUC309-26 | 1-5/8 | 1.39 | ||||||||||||
| SSUC309-27 | 1-11/16 | 1.33 | ||||||||||||
| SSUC309-28 | 1-3/4 | 1.28 | ||||||||||||
| SSUC310 | 50 | 110 | 61 | 32 | 3.0 | 22 | 39 | 12 | M12×1.5 1/2-20UNF | 10 | 40.44 | 30.35 | 1.65 | |
| SSUC310-30 | 1-7/8 | 1.75 | ||||||||||||
| SSUC310-31 | 1-15/16 | 1.67 | ||||||||||||
