Products Bearings SSB200

SSB200

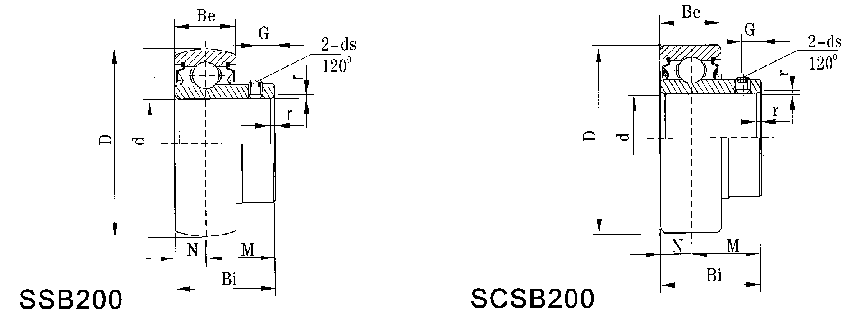

SSB200 drawing.gif

Bearing No.	Shaft Dia.		Boundary Dimensions（mm）								Basic Load Rating(kN)		Weight

											Dynamic	Static
	d		D	Bi	Be	r	N	M	ds	G	Cr	Cor	Kg(pc)
	mm	in
SSB201	12		40	22	12	1	6	16	M5×0.8 1/4-28UNF	4.5	7.82	3.58	0.1
SSB201-8		1/2											0.1
SSB202	15												0.09
SSB202-9		9/16											0.09
SSB202-10		5/8											0.09
SSB203	17												0.08
SSB203-11		11/16											0.08
SSB204	20		47	25	14	1.5	7	18	M6×0.75 1/4-28UNF	4.5	10.37	5.04	0.12
SSB204-12		3/4											0.13
SSB205	25		52	27	15	1.5	7.5	19.5	M6×0.75 1/4-28UNF	5	11.31	5.97	0.17
SSB205-13		13/16											0.19
SSB205-14		7/8											0.18
SSB205-15		15/16											0.17
SSB205-16		1											0.16
SSB206	30		62	30	16	1.5	8	22	M6×0.75 1/4-28UNF	5.5	15.73	8.64	0.25
SSB206-17		1-1/16											0.28
SSB206-18		1-1/8											0.26
SSB206-19		1-3/16											0.25
SSB206-20		1-1/4											0.23
SSB207	35		72	32	17	2	8.5	23.5	M8×1 5/16-24UNF	6	20.83	11.68	0.37
SSB207-20		1-1/4											0.41
SSB207-21		1-5/16											0.39
SSB207-22		1-3/8											0.37
SSB207-23		1-7/16											0.35
SSB208	40		80	34	18	2	9	25	M8×1 5/16-24UNF	8	23.55	13.6	0.45
SSB208-24		1-1/2											0.48
SSB208-25		1-9/16											0.45
SSB209	45		85	41.2	19	2	10.2	31	M8×1 5/16-24UNF	8	26.44	19.56	0.80
SSB209-26		1-5/8
SSB209-27		1-11/16
SSB209-28		1-3/4
SSB210	50		90	43.5	20	2	10.9	32.6	M10×1.25 3/8-24UNF	9	30.01	22.53	0.87
SSB210-29		1-13/16
SSB210-30		1-7/8
SSB210-31		1-15/16
SSB210-32		2
SSB211	55		100	45.3	21	2.5	11.8	33.5	M10×1.25 3/8-24UNF	10	32.39	24	1.1
SSB211-32		2
SSB211-33		2-1/16
SSB211-34		2-1/8
SSB211-35		2-3/16
SSB212	60		110	53.7	22	2.5	14.9	38.8	M10×1.25 3/8-24UNF	10	35.28	26.18	1.3
SSB212-36		2-1/4
SSB212-37		2-5/16
SSB212-38		2-3/8
SSB212-39		2-7/16
