SSC200

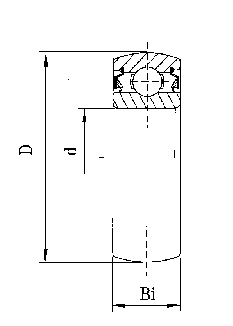

Bearing No. | Boundary Dimensions（mm ） | Basic Load Rating (kN) | Weight | ||||||
| Dynamic | Static | ||||||||
| d | D | Bi | Cr | Cor | Kg(pc) | ||||
| mm | in | mm | in | mm | in | ||||
| SSC203 | 17 | 0.6693 | 40 | 1.5748 | 12 | 0.4724 | 5.95 | 3.58 | 0.065 |
| SSC204 | 20 | 0.7874 | 47 | 1.8504 | 14 | 0.5512 | 8.4 | 4.96 | 0.11 |
| SSC205 | 25 | 0.9843 | 52 | 2.0472 | 15 | 0.5906 | 9.16 | 5.58 | 0.18 |
| SSC206 | 30 | 1.1811 | 62 | 2.4409 | 16 | 0.6299 | 12.72 | 8.03 | 0.2 |
| SSC207 | 35 | 1.378 | 72 | 2.8346 | 17 | 0.6693 | 16.79 | 10.94 | 0.3 |
| SSC208 | 40 | 1.5748 | 80 | 3.1496 | 18 | 0.7087 | 19.3 | 12.75 | 0.37 |
| SSC209 | 45 | 1.7717 | 85 | 3.3465 | 19 | 0.748 | 20.71 | 14.17 | 0.43 |
| SSC210 | 50 | 1.9685 | 90 | 3.5433 | 20 | 0.7874 | 22.93 | 15.87 | 0.46 |
| SSC211 | 55 | 2.1653 | 100 | 3.937 | 21 | 0.8267 | 24.33 | 17.48 | 0.62 |
| SSC212 | 60 | 2.3622 | 110 | 4.3307 | 22 | 0.8661 | 26.95 | 19.6 | 0.8 |
