Products Bearings SHC200

SHC200

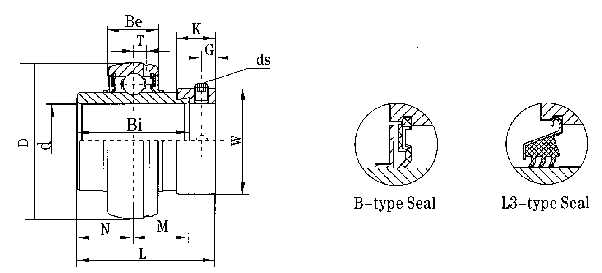

SHC200 drawing.gif

Bearing No.	Shaft Dia.		Boundary Dimensions（mm）											Basic Load Rating(kN)		Weight

														Dynamic	Static
	d		D	L	Bi	Be	N	M	Ds	G	K	W	T	Cr	Cor	Kg(pc)
	mm	in
SHC204	20		47	43.7	34.2	17	17.1	17.1	M6×0.75	4.8	13.5	33.3	3.7	10.91	5.32	0.21
SHC204-12		3/4							1/4-28UNF							0.22
SHC205	25		52	44.4	34.9	17	17.5	17.4	M6×0.75 1/4-28UNF	4.8	13.5	38.1	3.9	11.16	6	0.25
SHC205-13		13/16														0.31
SHC205-14		7/8														0.29
SHC205-15		15/16														0.27
SHC05-16		1														0.25
SHC206	30		62	48.4	36.5	19	18.3	18.2	M8×1 5/16-24UNF	6	15.9	44.5	5	15.81	8.64	0.36
SHC206-17		1-1/16														0.4
SHC206-18		1-1/8														0.38
SHC06-19		1-3/16														0.35
SHC06-20		1-1/4														0.32
SHC207	35		72	51.1	37.6	20	18.8	18.8	M8×1 5/16-24UNF	6.5	17.5	55.6	5.7	20.83	11.68	0.59
SHC07-20		1-1/4														0.65
SHC07-21		1-5/16														0.62
SHC07-22		1-3/8														0.59
SHC07-23		1-7/16														0.55
SHC208	40		80	56.3	42.8	21	21.4	21.4	M8×1 5/16-24UNF	6.5	18.3	60.3	6.2	23.55	13.6	0.74
SHC208-24		1-1/2														0.78
SHC208-25		1-9/16														0.75
SHC209	45		85	56.3	42.8	22	21.4	21.4	M8×1 5/16-24UNF	6.5	18.3	63.5	6.4	26.35	15.6	0.82
SHC209-26		1-5/8														0.93
SHC209-27		1-11/16														0.88
SHC209-28		1-3/4														0.84
SHC210	50		90	62.7	49.2	24	24.6	24.6	M8×1 5/16-24UNF	6.5	18.3	69.9	6.5	28.48	18	1.08
SHC210-29		1-13/16														1.22
SHC210-30		1-7/8														1.17
SHC210-31		1-15/16														1.11
SHC210-32		2														1.05
SHC211	55		100	71.4	55.5	25	27.8	27.7	M10×1.25 3/8-24UNF	8	20.7	76.2	7	35.28	22.4	1.4
SHC211-32		2														1.59
SHC211-33		2-1/16														1.52
SHC211-34		2-1/8														1.45
SHC211-35		2-3/16														1.37
SHC212	60		110	77.8	61.9	27	31	30.9	M10×1.25 3/8-24UNF	8	22.3	84.2	7.6	42.5	27.6	1.7
SHC212-36		2-1/4														1.95
SHC212-37		2-5/16														1.86
SHC212-38		2-3/8														1.77
SHC212-39		2-7/16														1.68
