SUCT200

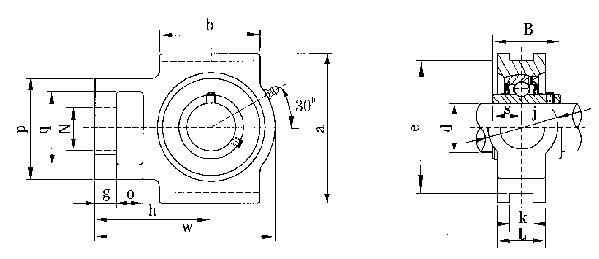

SUCT200 drawing.gif

Unit No.	Shaft Dia d		Boundary Dimensions(mm)															Bearing No.	Housing
																			Housing No.	Mass (kg)
	(in)	(mm)	o	g	p	q	N	b	k	e	a	w	j	L	h	B	S
SUCT201-8	1/2		16	10	51	32	19	51	12	76	89	94	32	21	61	31	12.7	SSUC201-8	ST204	0.89
SUCT202-9	9/16																	SSUC202-9
SUCT202-10	5/8																	SSUC202-10
SUCT203-11	11/16																	SSUC203-11
SUCT204-12	3/4																	SSUC204-12
SUCT201		12																SSUC201
SUCT202		15																SSUC202
SUCT203		17																SSUC203
SUCT204		20																SSUC204
SUCT205-13	13/16		16	10	51	32	19	51	12	76	89	97	32	24	62	34.1	14.3	SSUC205-13	ST205	0.99
SUCT205-14	7/8																	SSUC205-14
SUCT205-15	15/16																	SSUC205-15
SUCT205-16	1																	SSUC205-16
SUCT205		25																SSUC205
SUCT206-17	1-1/16		16	10	56	37	22	57	12	89	102	113	37	28	70	38.1	15.9	SSUC206-17	ST206	1.46
SUCT206-18	1-1/18																	SSUC206-18
SUCT206-19	1-3/16																	SSUC206-19
SUCT206-20	1-1/4																	SSUC206-20
SUCT206		30																SSUC206
SUCT207-20	1-1/4		16	13	64	37	22	64	12	89	102	129	37	30	78	42.9	17.5	SSUC207-20	ST207	1.81
SUCT207-21	1-5/16																	SSUC207-21
SUCT207-22	1-3/8																	SSUC207-22
SUCT207-23	1-7/16																	SSUC207-23
SUCT207		35																SSUC207
SUCT208-24	1-1/2		19	16	83	49	29	83	16	102	114	144	49	33	88	49.2	19	SSUC208-24	ST208	2.68
SUCT208-25	1-9/16																	SSUC208-25
SUCT208		40																SSUC208
SUCT209-26	1-5/8		19	16	83	49	29	83	16	102	117	144	49	35	87	49.2	19	SSUC209-26	ST209	2.99
SUCT209-27	1-11/16																	SSUC209-27
SUCT209-28	1-3/4																	SSUC209-28
SUCT209		45																SSUC209
SUCT210-29	1-13/16		19	16	83	49	29	86	16	102	117	149	49	37	90	51.6	19	SSUC210-29	ST210	2.98
SUCT210-30	1-7/8																	SSUC210-30
SUCT210-31	1-15/16																	SSUC210-31
SUCT210-32	2																	SSUC210-32
SUCT210		50																SSUC210
SUCT211-32	2		25	19	102	64	35	95	22	130	146	171	64	38	106	55.6	22.2	SSUC211-32	ST211	4.52
SUCT211-33	2-1/16																	SSUC211-33
SUCT211-34	2-1/8																	SSUC211-34
SUCT211-35	2-3/16																	SSUC211-35
SUCT211		55																SSUC211
SUCT212-36	2-1/4		32	19	102	64	35	102	22	130	146	194	64	42	119	65.1	25.4	SSUC212-36	ST212	5.57
SUCT212-37	2-5/16																	SSUC212-37
SUCT212-38	2-3/8																	SSUC212-38
SUCT212-39	2-7/16																	SSUC212-39
SUCT212		60																SSUC212
