SUCFC200

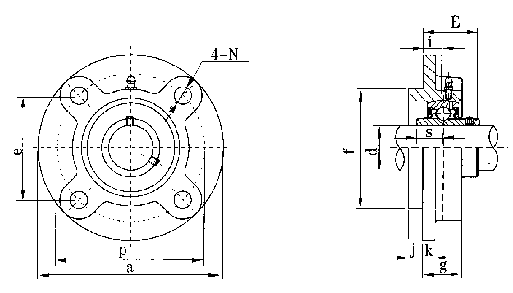

SUCFC200 drawing.gif

Unit No.	Shaft Dia d		Boundary Dimensions(mm)											Bolt Size		Bearing No.	Housing
																	Housing No.	Mass (kg)
	(in)	(mm)	a	p	e	i	N	j	k	g	f	E	S	mm	in
SUCFC201-8	1/2		100	78	55.1	10	12	5	7	20.5	62	28.3	12.7	M10	3/8	SSUC201-8	SFC204	0.96
SUCFC202-9	9/16															SSUC202-9
SUCFC202-10	5/8															SSUC202-10
SUCFC203-11	11/16															SSUC203-11
SUCFC 204-12	3/4															SSUC204-12
SUCFC201		12														SSUC201
SUCFC202		15														SSUC202
SUCFC203		17														SSUC203
SUCFC204		20														SSUC 204
SUCFC205-13	13/16		115	90	63.6	10	12	6	7	21	70	29.8	14.3	M10	3/8	SSUC205-13	SFC205	1.24
SUCFC205-14	7/8															SSUC205-14
SUCFC205-15	15/16															SSUC205-15
SUCFC205-16	1															SSUC205-16
SUCFC205		25														SSUC205
SUCFC206-17	1-1/16		125	100	70.7	10	12	8	8	23	80	32.2	15.9	M10	3/8	SSUC206-17	SFC206	1.66
SUCFC206-18	1-1/8															SSUC206-18
SUCFC206-19	1-3/16															SSUC206-19
SUCFC206-20	1-1/4															SSUC206-20
SUCFC206		30														SSUC206
SUCFC207-20	1-1/4		135	110	77.8	11	14	8	9	26	90	36.4	17.5	M12	7/16	SSUC207-20	SFC207	2.11
SUCFC207-21	1-5/16															SSUC207-21
SUCFC207-22	1-3/8															SSUC207-22
SUCFC207-23	1-7/16															SSUC207-23
SUCFC207		35														SSUC207
SUCFC208-24	1-1/2		145	120	84.8	11	14	10	9	26	100	41.2	19	M12	7/16	SSUC208-24	SFC208	2.48
SUCFC208-25	1-9/16															SSUC208-25
SUCFC208		40														SSUC208
SUCFC209-26	1-5/8		160	132	93.3	10	16	12	14	26	105	40.2	19	M14	1/2	SSUC209-26	SFC209	3.35
SUCFC209-27	1-11/16															SSUC209-27
SUCFC209-28	1-3/4															SSUC209-28
SUCFC209		45														SSUC209
SUCFC210-29	1-13/16		165	138	97.6	10	16	12	14	28	110	42.6	19	M14	1/2	SSUC210-29	SFC210	3.58
SUCFC 210-30	1-7/8															SSUC210-30
SUCFC210-31	1-15/16															SSUC210-31
SUCFC210-32	2															SSUC210-32
SUCFC210		50														SSUC210
SUCFC211-32	2		185	150	106.1	13	19	12	15	31	125	46.4	22.2	M16	5/8	SSUC211-32	SFC211	5.07
SUCFC211-33	2-1/16															SSUC211-33
SUCFC211-34	2-1/8															SSUC211-34
SUCFC211-35	2-3/16															SSUC211-35
SUCFC211		55														SSUC211
SUCFC212-36	2-1/4		195	160	113.1	17	19	12	15	36	135	56.7	25.4	M16	5/8	SSUC212-36	SFC212	5.97
SUCFC 212-37	2-5/16															SSUC212-37
SUCFC212-38	2-3/8															SSUC212-38
SUCFC212-39	2-7/16															SSUC212-39
SUCFC212		60														SSUC212
