SUCFBPL200

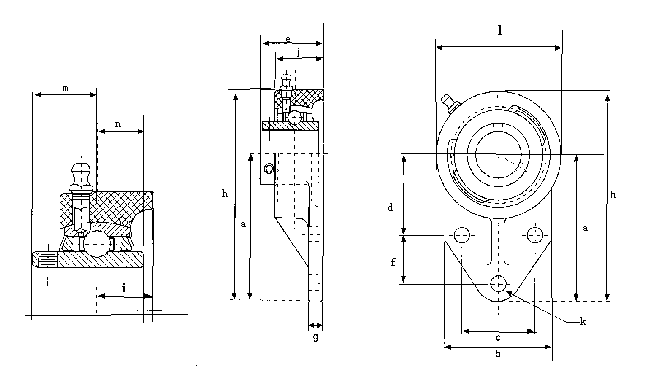

Unit No. | Shaft Dia d | Boundary Dimensions(mm) | Bolt Size | Bearing No. | Housing Weight (kg) | ||||||||||||||
| (in) | (mm) | h | d | c | f | i | g | a | b | e | j | k | l | m | n | mm | |||
| SUCFBPL201-8 | 1/2 | 108 | 42.9 | 38.1 | 22.2 | 15.4 | 11.4 | 76.2 | 62 | 33.7 | 26.5 | 10.7 | 63.5 | 18.3 | 12.7 | M10 | SSUC201-8 | 0.1 | |
| SUCFBPL202-9 | 9/16 | SSUC202-9 | |||||||||||||||||
| SUCFBPL202-10 | 5/8 | SSUC202-10 | |||||||||||||||||
| SUCFBPL203-11 | 11/16 | SSUC203-11 | |||||||||||||||||
| SUCFBPL204-12 | 3/4 | SSUC204-12 | |||||||||||||||||
| SUCFBPL201 | 12 | SSUC201 | |||||||||||||||||
| SUCFBPL202 | 15 | SSUC202 | |||||||||||||||||
| SUCFBPL203 | 17 | SSUC203 | |||||||||||||||||
| SUCFBPL204 | 20 | SSUC204 | |||||||||||||||||
| SUCFBPL205-13 | 13/16 | 120.6 | 46 | 41.3 | 28.6 | 21 | 11.4 | 85.7 | 63.5 | 40.7 | 34 | 10.7 | 70 | 19.7 | 14.3 | M10 | SSUC205-13 | 0.12 | |
| SUCFBPL205-14 | 7/8 | SSUC205-14 | |||||||||||||||||
| SUCFBPL205-15 | 15/16 | SSUC205-15 | |||||||||||||||||
| SUCFBPL205-16 | 1 | SSUC205-16 | |||||||||||||||||
| SUCFBPL205 | 25 | SSUC205 | |||||||||||||||||
| SUCFBPL206-17 | 1-1/16 | 138.5 | 52.4 | 47.6 | 31.8 | 19 | 13.3 | 95 | 76 | 41.2 | 32 | 10.7 | 83 | 22.2 | 15.9 | M10 | SSUC206-17 | 0.16 | |
| SUCFBPL206-18 | 1-1/8 | SSUC206-18 | |||||||||||||||||
| SUCFBPL206-19 | 1-3/16 | SSUC206-19 | |||||||||||||||||
| SUCFBPL206-20 | 1-1/4 | SSUC206-20 | |||||||||||||||||
| SUCFBPL206 | 30 | SSUC206 | |||||||||||||||||
| SUCFBPL207-20 | 1-1/4 | 157 | 60.3 | 50.8 | 31.8 | 21.4 | 16.1 | 108 | 89 | 46.8 | 36.5 | 13.1 | 95 | 25.4 | 17.5 | M12 | SSUC207-20 | 0.18 | |
| SUCFBPL207-21 | 1-5/16 | SSUC207-21 | |||||||||||||||||
| SUCFBPL207-22 | 1-3/8 | SSUC207-22 | |||||||||||||||||
| SUCFBPL207-23 | 1-7/16 | SSUC207-23 | |||||||||||||||||
| SUCFBPL207 | 35 | SSUC207 | |||||||||||||||||
