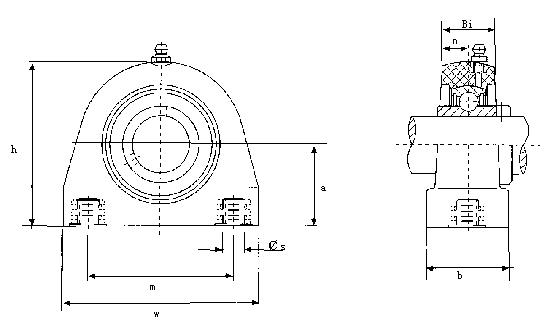

SUCPAPL200
Unit No. | Shaft Dia d | Boundary Dimensions(mm) | Bolt Size | Bearing No. | Housing Weight (kg) | ||||||||
| a | h | m | b | w | Bi | n | (mm) | ||||||
| (in) | (mm) | ||||||||||||
| SUCPAPL201-8 | 1/2 | 33.3 | 66 | 50.8 | 34.5 | 72.8 | 31 | 12.7 | M8 | SSUC201-8 | 0.13 | ||
| SUCPAPL202-9 | 9/16 | SSUC202-9 | |||||||||||
| SUCPAPL202-10 | 5/8 | SSUC202-10 | |||||||||||
| SUCPAPL203-11 | 11/16 | SSUC203-11 | |||||||||||
| SUCPAPL204-12 | 3/4 | SSUC204-12 | |||||||||||
| SUCPAPL201 | 12 | SSUC201 | |||||||||||
| SUCPAPL202 | 15 | SSUC202 | |||||||||||
| SUCPAPL203 | 17 | SSUC203 | |||||||||||
| SUCPAPL204 | 20 | SSUC204 | |||||||||||
| SUCPAPL205-13 | 13/16 | 36.5 | 73.5 | 50.8 | 39.5 | 76.2 | 34 | 14.3 | M10 | SSUC205-13 | 0.15 | ||
| SUCPAPL205-14 | 7/8 | SSUC205-14 | |||||||||||
| SUCPAPL205-15 | 15/16 | SSUC205-15 | |||||||||||
| SUCPAPL205-16 | 1 | SSUC205-16 | |||||||||||
| SUCPAPL205 | 25 | SSUC205 | |||||||||||
| SUCPAPL206-17 | 1-1/16 | 42.9 | 84 | 76.2 | 42.5 | 101 | 38.1 | 15.9 | M10 | SSUC206-17 | 0.24 | ||
| SUCPAPL206-18 | 1-1/8 | SSUC206-18 | |||||||||||
| SUCPAPL206-19 | 1-3/16 | SSUC206-19 | |||||||||||
| SUCPAPL206-20 | 1-1/4 | SSUC206-20 | |||||||||||
| SUCPAPL206 | 30 | SSUC206 | |||||||||||
| SUCPAPL207-20 | 1-1/4 | 47.6 | 95 | 82.6 | 47.5 | 110 | 42.9 | 17.5 | M10 | SSUC207-20 | 0.28 | ||
| SUCPAPL207-21 | 1-5/16 | SSUC207-21 | |||||||||||
| SUCPAPL207-22 | 1-3/8 | SSUC207-22 | |||||||||||
| SUCPAPL207-23 | 1-7/16 | SSUC207-23 | |||||||||||
| SUCPAPL207 | 35 | SSUC207 | |||||||||||
| SUCPAPL208-24 | 1-1/2 | 49.2 | 100.5 | 88.9 | 48 | 120 | 49.2 | 19 | M12 | SSUC208-24 | 0.39 | ||
| SUCPAPL208-25 | 1-9/16 | SSUC208-25 | |||||||||||
| SUCPAPL208 | 40 | SSUC208 | |||||||||||
| SUCPAPL209-26 | 1-5/8 | 54 | 107 | 95.3 | 54 | 124 | 49.2 | 19 | M12 | SSUC209-26 | 0.47 | ||
| SUCPAPL209-27 | 1-11/16 | SSUC209-27 | |||||||||||
| SUCPAPL209-28 | 1-3/4 | SSUC209-28 | |||||||||||
| SUCPAPL209 | 45 | SSUC209 | |||||||||||
| SUCPAPL210-29 | 1-13/16 | 57.2 | 115 | 101.6 | 54 | 135 | 51.6 | 19 | M16 | SSUC210-29 | 0.56 | ||
| SUCPAPL210-30 | 1-7/8 | SSUC210-30 | |||||||||||
| SUCPAPL210-31 | 1-15/16 | SSUC210-31 | |||||||||||
| SUCPAPL210-32 | 2 | SSUC210-32 | |||||||||||
| SUCPAPL210 | 50 | SSUC210 | |||||||||||
