GW200 Series

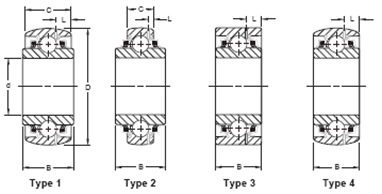

Bearing No. | Type | Boundary Dimensions(mm) | ||||
| d | D | B | C | L | ||
| Cylindrical Bore | ||||||
| GW209PPB4 | 4-2. | 39 | 85 | 30.18 | 30.18 | 8.79 |
| GW209PPB2 | 4-2. | 45 | 85 | 30.18 | 30.18 | 8.79 |
| GW209PPB11 | 2-2. | 45.24 | 85 | 36.53 | 22 | 4.55 |
| GW210PP3 | 3- | 37.53 | 90 | 30.18 | 30.18 | 9.02 |
| GW210PPB5 | 4- | 45.34 | 90 | 30.18 | 30.18 | 9.02 |
| GW210PPB2 | 4- | 49.23 | 90 | 30.18 | 30.18 | 9.02 |
| GW210PP9 | 2- | 49.4 | 90 | 36.53 | 23 | 4.7 |
| GW211PPB13 | 2-2. | 45.34 | 100 | 33.34 | 25 | 5.82 |
| GW211PPB10 | 4-2. | 49.23 | 100 | 33.34 | 33.34 | 9.96 |
| GW211PPB14 | 2-2. | 51.18 | 100 | 33.34 | 25 | 5.82 |
| GW211PP2 | 3-2. | 55.58 | 100 | 33.34 | 33.34 | 9.96 |
| GW211PPB2 | 4-2. | 55.58 | 100 | 33.34 | 33.34 | 9.96 |
| GW211PPB8 | 2-2. | 55.58 | 100 | 33.34 | 25 | 5.82 |
| GW211PPB9 | 2-2. | 55.75 | 100 | 39.69 | 25 | 5.41 |
| GW214PPB6 | 2- | 68.28 | 125 | 68.26 | 28 | 5.54 |
| GW214PP2 | 3- | 70 | 125 | 39.69 | 39.69 | 10.52 |
| GW214PPB2 | 4- | 70 | 125 | 39.69 | 39.69 | 10.52 |
| GW214PPB5 | 1- | 70 | 125 | 61.9 | 39.69 | 10.52 |
| Square Bore | ||||||
| GW208PPB6 | 2-1. | 25.4 | 80 | 36.53 | 21 | 5.66 |
| GW208PPB5 | 2-1. | 28.6 | 80 | 36.53 | 21 | 5.66 |
| GW208PPB8 | 1-1. | 28.6 | 80 | 36.53 | 30.18 | 8.36 |
| GW208PPB17 | 3-1. | 28.6 | 85.738 | 36.53 | 30.18 | 8.28 |
| GW209PPB5 | 1-2. | 31.8 | 85 | 36.53 | 30.18 | 8.79 |
| GW209PPB8 | 2-2. | 31.8 | 85 | 36.53 | 22 | 4.55 |
| GW210PP4 | 3- | 28.6 | 90 | 30.18 | 30.18 | 9.02 |
| GW210PPB4 | 4- | 28.6 | 90 | 30.18 | 30.18 | 9.02 |
| GW211PP3 | 3-2. | 38.1 | 100 | 33.34 | 33.34 | 9.96 |
| GW211PPB3 | 4-2. | 38.1 | 100 | 33.34 | 33.34 | 9.96 |
| GW211PP17 | 3-2. | 38.1 | 100 | 44.45 | 33.34 | 9.96 |
| GW214PPB4 | 4- | 50.8 | 125 | 39.69 | 39.69 | 10.52 |
