SUCFCPL200

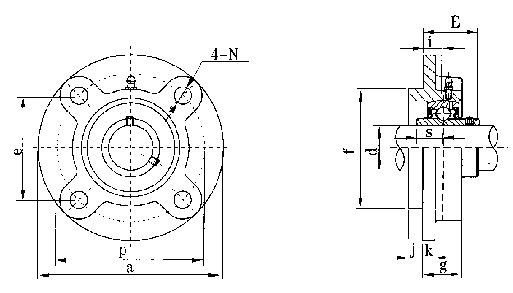

Unit No. | Shaft Dia d | Boundary Dimensions(mm) | Bolt Size | Bearing No. | Housing Weight (kg) | |||||||||||
| (in) | (mm) | a | p | e | i | N | j | k | g | f | E | S | mm | |||
| SUCFC201-8 | 1/2 | 100 | 78 | 55.1 | 10 | 11 | 5 | 7 | 20.5 | 62 | 31 | 12.7 | M10 | SSUC201-8 | 0.13 | |
| SUCFC202-9 | 9/16 | SSUC202-9 | ||||||||||||||
| SUCFC202-10 | 5/8 | SSUC202-10 | ||||||||||||||
| SUCFC203-11 | 11/16 | SSUC203-11 | ||||||||||||||
| SUCFC204-12 | 3/4 | SSUC204-12 | ||||||||||||||
| SUCFC201 | 12 | SSUC201 | ||||||||||||||
| SUCFC202 | 15 | SSUC202 | ||||||||||||||
| SUCFC203 | 17 | SSUC203 | ||||||||||||||
| SUCFC204 | 20 | SSUC 204 | ||||||||||||||
| SUCFC205-13 | 13/16 | 115 | 90 | 63.6 | 10 | 11 | 6 | 7 | 21 | 70 | 34.1 | 14.3 | M10 | SSUC205-13 | 0.17 | |
| SUCFC205-14 | 7/8 | SSUC205-14 | ||||||||||||||
| SUCFC205-15 | 15/16 | SSUC205-15 | ||||||||||||||
| SUCFC205-16 | 1 | SSUC205-16 | ||||||||||||||
| SUCFC205 | 25 | SSUC205 | ||||||||||||||
| SUCFC206-17 | 1-1/16 | 125 | 100 | 70.7 | 10 | 11 | 8 | 8 | 23 | 80 | 38.1 | 15.9 | M10 | SSUC206-17 | 0.19 | |
| SUCFC206-18 | 1-1/8 | SSUC206-18 | ||||||||||||||
| SUCFC206-19 | 1-3/16 | SSUC206-19 | ||||||||||||||
| SUCFC206-20 | 1-1/4 | SSUC206-20 | ||||||||||||||
| SUCFC206 | 30 | SSUC206 | ||||||||||||||
| SUCFC207-20 | 1-1/4 | 135 | 110 | 77.8 | 11 | 13 | 8 | 9 | 26 | 90 | 42.9 | 17.5 | M12 | SSUC207-20 | 0.23 | |
| SUCFC207-21 | 1-5/16 | SSUC207-21 | ||||||||||||||
| SUCFC207-22 | 1-3/8 | SSUC207-22 | ||||||||||||||
| SUCFC207-23 | 1-7/16 | SSUC207-23 | ||||||||||||||
| SUCFC207 | 35 | SSUC207 | ||||||||||||||
| SUCFC208-24 | 1-1/2 | 145 | 120 | 84.8 | 11 | 13 | 10 | 9 | 26 | 100 | 49.2 | 19 | M12 | SSUC208-24 | 0.28 | |
| SUCFC208-25 | 1-9/16 | SSUC208-25 | ||||||||||||||
| SUCFC208 | 40 | SSUC208 | ||||||||||||||
