GEZ...ES

GEZ Series fractured race spherical bearings for high wear and increased load applications are available in metal-to-metal or sealed options

BALL

• 52100 Bearing Steel

• Protective Coated for

Corrosion Resistance

RACE

• 52100 Bearing Steel

• Protective Coated for

Corrosion Resistance

• 2 Rubber Seals (2RS)

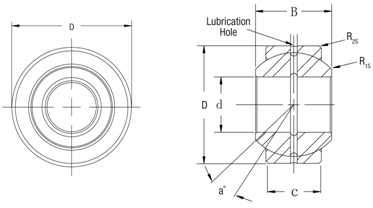

GEZ drawing.png

Part Number		Boundary Dimensions (inch)							Misalign Angle aº	Radial Static Load (lbs)	Net Weight (lbs)
Metal-to-Metal	Seals	d	D	C	B	Ball Dia	R1S	R2S	Misalign Angle aº	Radial Static Load (lbs)	Net Weight (lbs)
GEZ12ES	-	0.5	0.875	0.375	0.437	0.709	0.012	0.024	6	9217	0.05
GEZ15ES	-	0.625	1.063	0.469	0.547	0.906	0.012	0.024	6	14613	0.08
GEZ19ES	GEZ19ES2RS	0.75	1.25	0.562	0.656	1.083	0.012	0.024	6	21357	0.12
GEZ22ES	GEZ22ES2RS	0.875	1.438	0.656	0.765	1.26	0.012	0.024	6	28551	0.19
GEZ25ES	GEZ25ES2RS	1	1.625	0.75	0.875	1.437	0.012	0.024	6	37318	0.27
GEZ31ES	GEZ31ES2RS	1.25	2	0.937	1.093	1.791	0.024	0.024	6	58450	0.51
GEZ34ES	GEZ34ES2RS	1.375	2.188	1.031	1.187	1.929	0.024	0.039	6	69691	0.77
GEZ38ES	GEZ38ES2RS	1.5	2.438	1.125	1.312	2.154	0.024	0.039	6	84303	0.93
GEZ44ES	GEZ44ES2RS	1.75	2.813	1.312	1.531	2.516	0.024	0.039	6	114653	1.41
GEZ50ES	GEZ50ES2RS	2	3.188	1.5	1.75	2.874	0.024	0.039	6	150622	2.05
GEZ57ES	GEZ57ES2RS	2.25	3.563	1.687	2.166	3.228	0.024	0.039	6	191088	2.93
GEZ63ES	GEZ63ES2RS	2.5	3.938	1.875	2.187	3.622	0.024	0.039	6	238298	4.08
GEZ69ES	GEZ69ES2RS	2.75	4.375	2.062	2.406	3.937	0.039	0.039	6	281011	5.34
GEZ76ES	GEZ76ES2RS	3	4.75	2.25	2.625	4.311	0.039	0.039	6	337213	6.83
