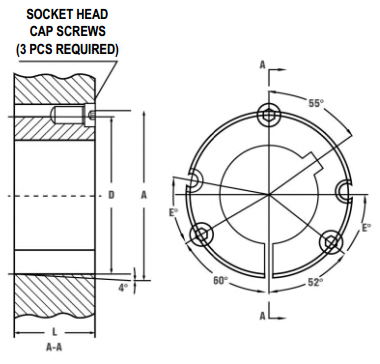

    Tech Center   Dimension of Taper-Lock Bushing

1008-3030 dimension of bushing.png


Bush   No.LADSet Screws
    Dia x Length
(BSW)
10087/81.3861-21/64l/4xl/2
11087/81.5111-29/64l/4xl/2
121011-7/81-3/43/8x5/8
12151 1/2
1310121-7/83/8x5/8
161012-1/42-1/83/8x5/8
16151 1/2
20121 1/42-3/42-5/87/16x7/8
20171 3/4
25171-3/43-3/83-1/41/2x1
25251-3/4
302024-1/445/8x1-1/4
30303


3525-5050 dimension of bushing.png



    Bush No.

    L

    A

    D
Set Screws
    Dia x Length
    (BSW)

    E°
35252 1/254.831/2x1 1/240°
35353 1/2
403035 3/45.545/8x1 3/440°
40404
45343 1/26 3/86.133/4x240°
45454 1/4
5040476.727/8x21/437°
50505
